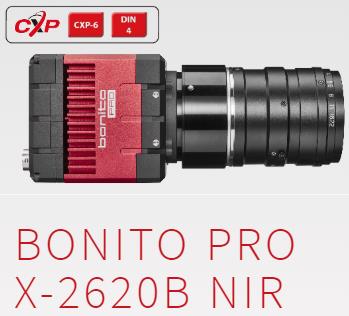

    Bonito PRO X-2620B NIR

    BONITO PRO
    X-2620B NIR

    • APS-H optical format CMOS sensor
    • PoCXP
    • 4-DIN type connector
    • 79.7 fps at full resolution

    26.2 Megapixel CMOS camera for wide temperature ranges - CoaXPress



    The Bonito PRO is Allied Vision’s brand new high-bandwidth camera series with a CoaXPress interface. Equipped with four DIN 1.0/2.3 connectors the camera is capable to transmit 25 Gbps via quad CXP-6 (6.25 Gbps) high-speed connections. The Bonito PRO features a rugged, fan-less housing design and its powerful feature set make this camera an ideal choice for high-definition imaging applications demanding high-throughput, robustness, and system design-in flexibility. By default, NIR models ship with no optical filter.



    Benefits and features:

    • Extended near-infrared (X-2620B NIR) model
    • Extended feature set with Sequencer Control and Multiple Region of Interest selection to support advanced imaging applications
    • On-board Defect Pixel and 2D Fixed Pattern Noise Correction for improved image quality
    • Simplified firmware update in the field via interface cables using GenICam File Access
    • Robust, fan-less design for industrial imaging applications
    • Heat-dissipation optimized housing to reduce image noise
    • Build-in tripod adapter and multiple mounting holes for eased system integration
    • DIN 1.0/2.3 CoaXPress connectors for secure operation in industrial environments
    • Single cable solution using Trigger and Power over CoaXPress (PoCXP)
    • Comprehensive I/O functionality for extended control of connected system components

    Options:

    • Multiple mount options for flexible lens selection: F-Mount, EF-Mount, M42-Mount, M58-Mount. All with or without planarity pre-adjustment (PA mount option).
    • Available with IRC30 IR cut filter, IRC Filter Schneider 486, or Protection Glass B 270 (ASG)

    See the Modular Concept for lens mount and optical filters options. See the Customization and OEM Solutions webpage for additional options.



    • Specifications
    •
    • Features
    •
    • Applications
    •
    • Quantum efficiency
    • Downloads
    •
    • Accessories



    Interface
    CoaXPress (CXP-6) 4 DIN
    Resolution
    5120 (H) × 5120 (V)
    Sensor
    ON Semi PYTHON 25K NIR
    Sensor type
    CMOS
    Sensor size
    Type APS-H
    Pixel size
    4.5 µm × 4.5 µm
    Lens mount (default)
    F-Mount
    Max. frame rate at full resolution
    79.7 fps
    ADC
    10 Bit
    Non-volatile memory (Flash)
    1024 KB
    Output
    Bit depth
    10 Bit
    Monochrome pixel formats
    Mono8, Mono10
    General purpose inputs/outputs (GPIOs)
    TTL I/Os
    1 input, 2 outputs
    Opto-isolated I/Os
    1 input, 2 outputs



    Operating conditions/dimensions
    Operating temperature
    -20 °C to +70 °C housing (without condensation)
    Power requirements (DC)
    24 VDC; PoCXP
    Power consumption
    ~15 W at 24 VDC; ~15 W PoCXP
    Mass
    ~500 g (depending on lens mount type)
    Body dimensions (L × W × H in mm)
    114.9 × 70 × 70 (with F-Mount and connectors)
    Regulations
    CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-003 Issue 6



    • Specifications
    •
    • Features
    •
    • Applications
    •
    • Quantum efficiency
    • Downloads
    •
    • Accessories



    Image optimization features:

    • Auto gain (manual gain control: 0 to 22 dB)
    • Auto exposure (manual exposure control: 1 µs to 1 s)
    • Binning (horizontal and/or vertical), (sum or average)
    • Decimation X/Y
    • Gamma correction
    • Look-up tables (LUTs)
    • Defect Pixel Correction
    • Fixed Pattern Noise Correction

    Camera control features:

    • Multiple region of interest (Multi-ROI)
    • Sequencer Control
    • Trigger over CoaXPress
    • EF lens control (order option -18)
    • Storable user sets
    • Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
    • Temperature monitoring (main board and sensor board)
    • Specifications
    •
    • Features
    •
    • Applications
    •
    • Quantum efficiency
    • Downloads
    •
    • Accessories



    Bonito PRO X-2620B NIR is ideal for a wide range of applications including:

    • Automated Optical Inspection of flat panel displays, PCB/electronics, printings
    • 2D/3D Surface Inspection (for example, glass)
    • Aerial imaging
    • Specifications
    •
    • Features
    •
    • Applications
    •
    • Quantum efficiency
    • Downloads
    •
    • Accessories









    • Specifications
    •
    • Features
    •
    • Applications
    •
    • Quantum efficiency
    • Downloads
    •
    • Accessories

    Data sheets and brochure

    Camera technical manual and features reference

    Additional documents

    MODULAR CONCEPT

    3D CAD files (STEP)

    Please right-click the link of a 3D camera model and select save as to download the file. After downloading,  unzip the STEP file. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: https://www.freecadweb.org/
