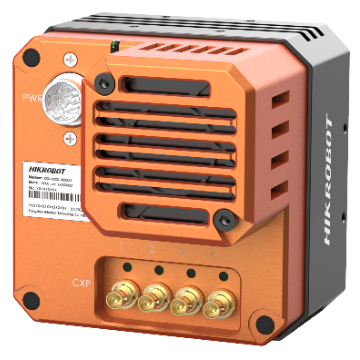

MV-CH250-90YM
25 MP 1.1" CMOS CoaXPress Area Scan Camera
IntroductionKey Feature
Resolution of 5120 × 5120, and pixel size of 2.5 µm × 2.5 µm.
Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
Adopts CXP-12 interface to transmit data.
Supports Off, Once, and Continuous exposure modes.
Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Available Model
C-mount with fan, mono: MV-CH250-90YM-C-NF
M58-mount with fan, mono: MV-CH250-90YM-M58S-NF
Dimension
M58 Mount with fan:
C Mount with fan:
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Specifications
Model | Model | MV-CH250-90YM |
Type | 25 MP 1.1" CMOS CoaXPress Area Scan Camera | |
Camera | Sensor type | CMOS, global shutter |
Sensor | GMAX0505 | |
Pixel size | 2.5 µm × 2.5 µm | |
Sensor size | 1.1" | |
Resolution | 5120 × 5120 | |
Max. Frame Rate | 150 fps | |
Dynamic range | 63 dB | |
SNR | 36 dB | |
Gain | 2x to 5x | |
Exposure time | 13 μs to 10 sec | |
Exposure mode | Off/Once/Continuous exposure mode | |
Mono/Color | Mono | |
Pixel format | Mono 8/10/12 | |
Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
Reverse image | Supports horizontal and vertical reverse image output | |
Electrical features | Data Interface | CoaXPress |
Digital I/O | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. | |
Power supply | 12 VDC to 24 VDC, CXP-1 and CXP-2 support PoCXP | |
Power consumption | Typ. 13.7 W@12 VDC | |
Mechanical | Lens mount | C-mount, optical back focal length 17.52 mm (0.7") M58-mount, optical back focal length 11.48 mm (0.5") |
Dimension | C-mount with fan: 80 mm × 80 mm × 80 mm (3.1" × 3.1" × 3.1") M58-mount with fan: 80 mm × 80 mm × 80 mm (3.1" × 3.1" × 3.1") | |
Weight | C-mount with fan: approx. 530 g (1.2 lb.) M58-mount with fan: approx. 540 g (1.2 lb.) | |
Ingress protection | IP40 (under proper lens installation and wiring) | |
Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
Humidity | 20% to 95% RH, non-condensing | |
General | Client software | Frame grabber software meeting with CoaXPress Protocol |
Operating system | 32/64-bit Windows 7/10 with 16 GB memory or above | |
Compatibility | CoaXPress, GenlCam | |
Certifications | CE, FCC, RoHS, KC |
