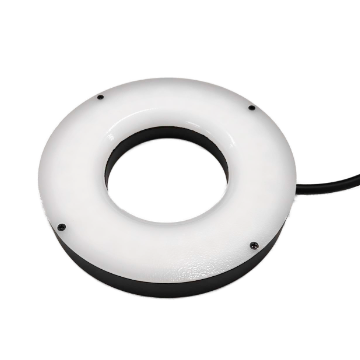

MV-LRDS-H-180-15-R2
| 제조사 | HIKROBOT |
|---|---|
| 모델명 | MV-LRDS-H-180-15-R2 |
| 다운로드 |
|
제품스펙
Ring Light MV-LRDS-H Series
제품상세
Download
Ring Light MV-LRDS-H Series datasheet Downloads
MV-LRDS-H-180-15-R2
Introduction
Key Feature
-
Adopts high-density LED array design.
-
Provides models with various outer dimensions and irradiation angles.
-
Adopts compact structure with good heat dissipation design.
-
Provides diffuse plate to improve lighting uniformity.
Available Model
MV-LRDS-H-180-15-R2

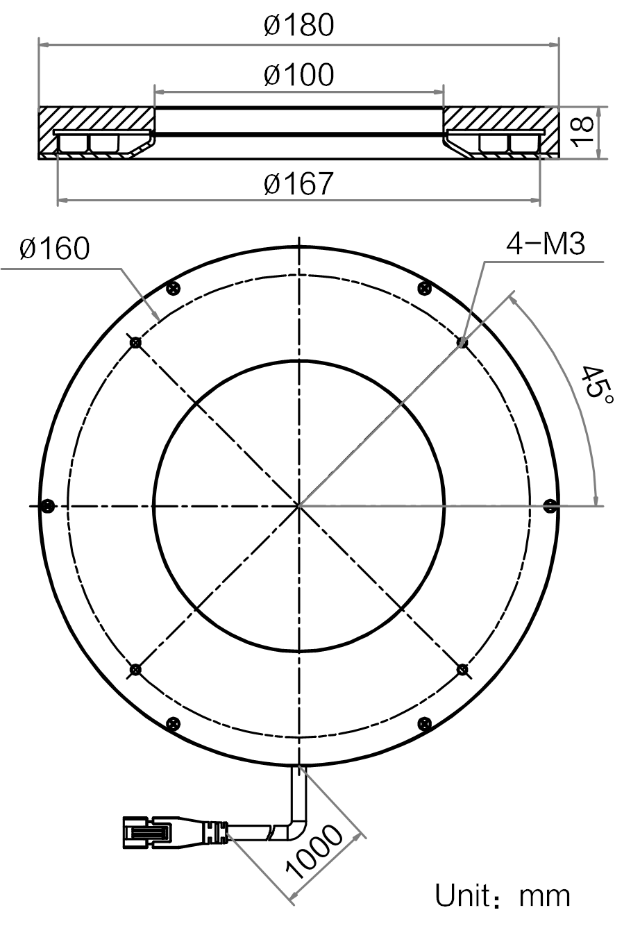

Dimension
Specifications
| Model | Product Model | MV-LRDS-H-180-15-R2 |
| Type | MV-LRDS-H-180-15-R2 | |
| Performance | Color | Red |
| Center illuminance | ≥7500 Lux@WD=10 mm | |
| Best working distance | 20 ~ 30 mm | |
| Irradiation angle | 15° | |
| Wavelength | 630 nm | |
| Color temperature | / | |
| Electrical feature | Power | 27.4 W |
| Connector type | SMR-03V-B | |
| Mechanical | Dimension | Φ180 mm × 18 mm |
| Outer dimension | Φ180 mm | |
| Bore dimension | Φ100 mm | |
| Emitting area length | Φ167 mm | |
| LED rows | 2 | |
| Weight | 570 g | |
| Cable length | 1 m | |
| Humidity | 20% RH to 90% RH (no condensation) | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) | |
| Diffuse plate included | PMMA |
