 MVL-LF3528M-F

제품목록  E-Mail 견적문의  SMS 견적문의
제조사 HIK ROBOT
모델명 MVL-LF3528M-F
다운로드

     제품스펙

    Large Format Φ43.2mm 35mm Focal Length FA LENS

     제품상세

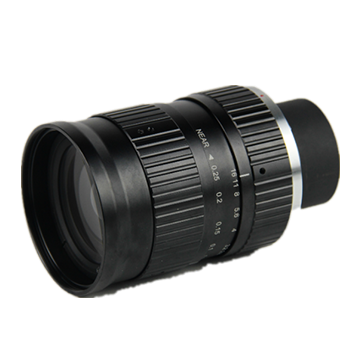

    MVL-LF3528M-F

    Large Format Φ43.2mm 35mm Focal Length FA LENS


     Introduction



    Key Feature

    • Ultra-high resolution and consistency of image clarity

    • Ultra-low distortion and high relative illumination

    • Image circle Φ43.2mm, applicable to large sensor area scan and 8K 5μm line scan cameras


    Available Model

    MVL-LF3528M-F


    Dimension


    *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.



    Specifications



    Model Model MVL-LF3528M-F
    Type Fixed focal length, Manual iris, Large format lens
    Performance Focal Length 35 mm
    F-Number F2.8 ~ F16
    Image Size Φ43.2 mm
    Optical Distortion 0.40%
    Magnification Range 0.05x ~ 0.25x
    Working Distance Range 125 ~ 728 mm
    Field of View D（43.47 mm）：41.96°
    H（36.17 mm）：35.44°
    V（24.11 mm）：24.05°
    Mechanical Iris Control Manual
    Focus Control Manual
    Filter Thread M58*0.75
    Mount F-Mount
    Flange Back Length 46.5 mm
    Dimension Φ61×81.5 mm
    Weight 536 g
    Temperature -10 ~ 50℃
    General Certification RoHS2.0
