렌즈 제품소개

제조사 Myutron

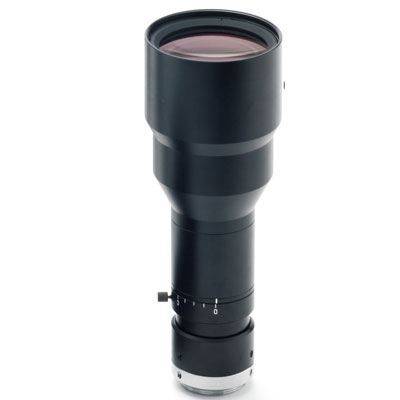

모델명 MGTL04VM
다운로드

 제품스펙

5 Mega Pixel

 제품상세



  • TELECENTRIC LENS
  •
  • MGTL Series
  • Telecentric Lens for 5 Mega Pixel

    Suitable for the inspection in ultra high accuracy






    FEATURES

    • Bring out the best quality in 5 Mega Pixel (3.45 μ of 2/3 inch)
    • Suitable for 3.45 μ or smaller pixel size
    • Excellent brightness, compared to Mega Pixel telecentric lenses
    • Adjustable iris, possible to adjust depth of field
    • 1.0x is compatible with 1.1 inch sensor
    • Compact design
    • Reduce hot spots of co-axial illumination





    SPECIFICATION

    Model  Mag . F No. NA WD OI DOF Resolution TV distortion sensor
    MGTL023H 0.23x 5.2 0.022 109mm 241mm 7.9mm 8.7μ 0.00% 2/3
    MGTL03VM 0.3x 5.0 0.03 111mm 263mm 4.4mm 6.6μ -0.04% 2/3
    MGTL0345VM 0.345x 4.9 0.035 111mm 267mm 3.3mm 5.5μ 0.00% 2/3
    MGTL04VM 0.4x 5.0 0.04 109mm 275mm 2.5mm 4.9μ 0.00% 2/3

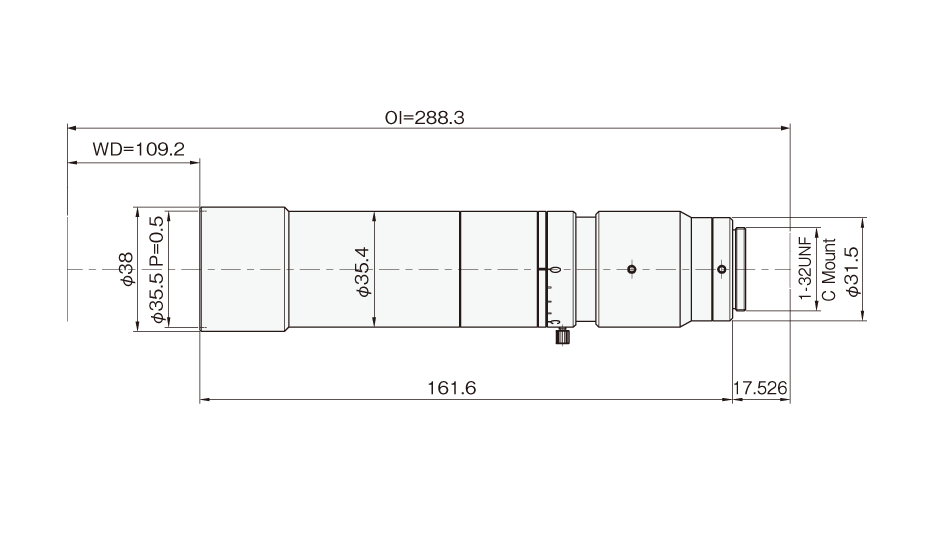

    MGTL05VM 0.5x 4.7 0.05 109mm 288mm 1.5mm 3.8μ -0.03% 2/3
    MGTL069VM 0.69x 6.6 0.052 109mm 307mm 1.1mm 3.9μ -0.04% 2/3

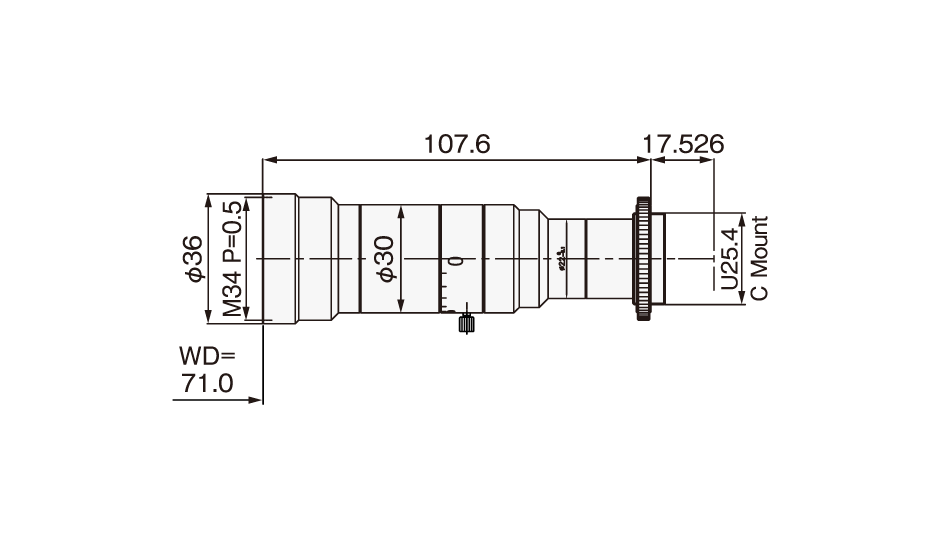

    MGTL10V 1.0x 5.4 0.093 71mm 196mm 0.43mm 2.5μ 0.00% 1.1
    MGTL03VMC 0.3x 5.0 0.03 111mm 267mm 4.4mm 6.6μ -0.04 2/3
    MGTL0345VMC 0.345x 4.9 0.035 111mm 272mm 3.3mm 5.5μ 0.00% 2/3
    MGTL04VMC 0.4x 5.0 0.04 109mm 280mm 2.5mm 4.9μ 0.00% 2/3
    MGTL05VMC 0.5x 4.7 0.05 109mm 293mm 2.3mm 3.8μ -0.03% 2/3
    MGTL069VMC 0.69x 6.6 0.052 109mm 312mm 1.1mm 3.9μ -0.04% 2/3

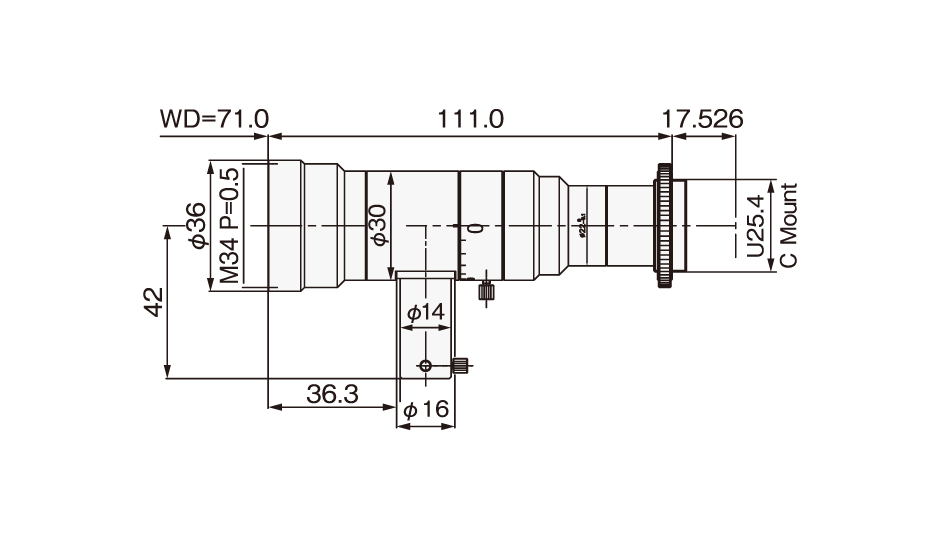

    MGTL10VC 1.0x 5.4 0.093 71mm 200mm  0.43mm 2.5μ  0.00% 1.1

    ○Indicated specifications are design values.

    ○For C mount

    ○Resolution indicates a theoretical resolution at a wavelength of 550nm.

    ○Depth of field is calculating assuming a horizontal 320 TV resolution using 1/2 inch camera (permissible circle of confusion 40μ).

    1_MGTL023H-cad.jpg2_MGTL03VM-cad.jpg3_MGTL0345VM-listpic.jpg4-MGTL04VM-cad.jpg5-MGTL05VM-cad.jpg6-MGTL069VMC-cad.jpg7-MGTL10V-cad.jpg8-MGTL03VMC-cad.jpg9-MGTL04VMC-cad.jpg10-MGTL05VMC-cad.jpg11-MGTL069VMC-cad.jpg12-MGTL10VC-cad.jpg
