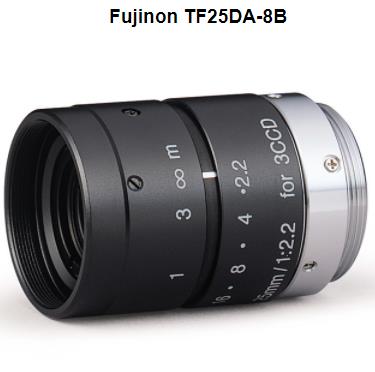

TF25DA-8B
| 제조사 | Fujinon |
|---|---|
| 모델명 | TF25DA-8B |
| 다운로드 |
|
제품스펙
제품상세
Format: 1/3"
Focal Length: 25mm
Aperture: F2.2
Iris Type: Manual Iris
Mount: C-Mount
Additional Information
Special design for optimizing the image quality of 3CCD cameras. Low-distortion design achieving accurate image input. Compact, lightweight and robust design, supporting various systems. Faithful color reproduction for 3CCD cameras, best suited for advanced monitoring applications. Robust enclosure that can withstanding vibrations and shocks. Equipped with locking screws for the iris and the focus.
| Mount | C | |
|---|---|---|
| Focal length | 25 mm | |
| Focus | Manual | |
| Iris Range | F2.2 - F16 * Close | |
| Iris | Manual | |
| Back Focal Distance (In Air) | 15.12 mm | |
| Exit Pupil Position (From Image Plane) | -120 mm | |
| Object Dimensions at M.O.D. | 42 × 32 mm | |
| Angular Field of View | 10°58′ × 8°14′ | |
| Focusing Range (From Front of the Lens) | ∞ - 0.2 m | |
| Filter Thread | M25.5 × 0.5 mm | |
| Mass | 60 g | |
FUJINON Machine Vision Lenses Catalog (PDF:7.1MB)
