Fixed lens for 1/1.8" ( 5 mega pixel)
| 제조사 | Chiopt |
|---|---|
| 모델명 | Fixed lens for 1/1.8" ( 5 mega pixel) |
| 다운로드 |
|
제품스펙
제품상세
Fixed lens for 1/1.8" FA
High performace for 5 Mega piexl camera
Features of Products
High performace for 5 Mega piexl camera
Fixed aperture and manual aperture can be selected
Small volume
TV Free distortion less than 1%

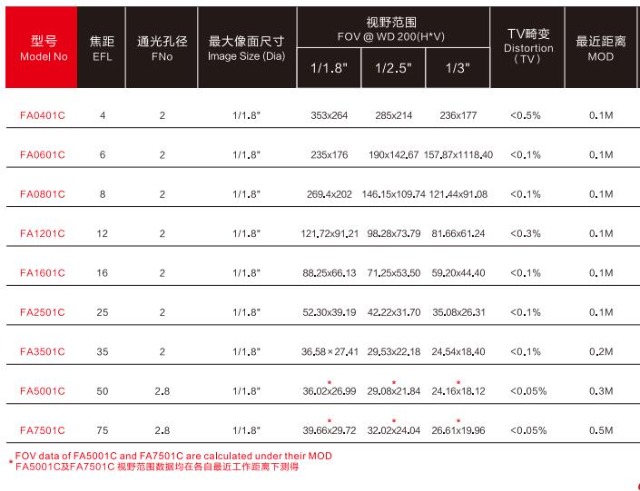

Specification of Products
| Product NＯ. | Image Size | Resolution | EFL | F/NO. | HxV | TV Distortion | M.O.D | specification |
|---|---|---|---|---|---|---|---|---|
| FA7501C | 1/1.8" | 5M | 75mm | 2.8~C | 1/1.8"：40.4*29.8,1/2.5"：32.34*24.26,1/3":26.96*20.22 | <0.05% | 0.5m |  |
| FA0401C | 1/1.8" | 5M | 4mm | 2~C | 1/1.8"：459*344,1/2.5"：375*279,1/3":311*231 | <0.5% | 0.1m | |
| FA0601C | 1/1.8" | 5M | 6mm | 2.2~C | 1/1.8"：351*263.3,1/2.5"：287.5*215.6,1/3":239.4*179.6 | <0.1% | 0.1m | |
| FA0801C | 1/1.8" | 5M | 8mm | 2.2~C | 1/1.8"：269.4*202,1/2.5"：219.2*164.2,1/3":186*136.7 | <0.1% | 0.1m | |
| FA1201C | 1/1.8" | 5M | 12mm | 2.2~C | 1/1.8"：182.5*136.9,1/2.5"：147.3*110.5,1/3":122.7*92.0 | <0.3% | 0.1m | |
| FA1601C | 1/1.8" | 5M | 16mm | 2.2~C | 1/1.8"：134.4*100.8,1/2.5"：107.7*80.8,1/3":89.0*66.7 | <0.1% | 0.1m | |
| FA2501C | 1/1.8" | 5M | 25mm | 2.2~C | 1/1.8"：139.6*104.7,1/2.5"：112.1*84.1,1/3":93.4*70 | <0.1% | 0.1m | |
| FA3501C | 1/1.8" | 5M | 35mm | 2.2~C | 1/1.8"：57.9*43.4,1/2.5"：46.5*34.9,1/3":38.7*29.0 | <0.1% | 0.2m | |
| FA5001C | 1/1.8" | 5M | 50mm | 2.8~C | 1/1.8"：36.1*27.1,1/2.5"：29.4*22.1,1/3":24.5*18.4 | <0.05% | 0.3m | |
