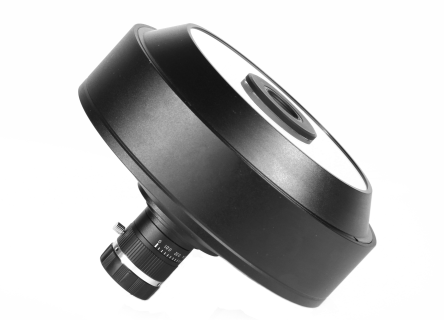

RF3602A 360° lenses
| 제조사 | Chiopt |
|---|---|
| 모델명 | RF3602A 360° lenses |
| 다운로드 |
|
제품스펙
Compact design and high resolution performance
제품상세
RF3602A 360° lenses
Compact design and high resolution performance
Features of Products
360 ° imaging system
Compact design and high resolution performance
For 360 ° side view imaging of small objects
Working distance: 9mm-45.4mm
Suitable for the inspection of components like pharmaceutical containers, plastic caps, pre-forms, bottle necks, screws and other threaded objects.
Specification of Products
| Model No | RF3602A | ||
| Detector Type | 1/1.8" | ||
| Image Size | 5.32 | ||
| Working Distance | 9-45.4 | ||
| FNo. | 8-16 | ||
| Diameter(mm) | Height(mm) | WD(mm) | FNo. |
| 7.5 | 5.3 | 45.4 | 16 |
| 10 | 7.7 | 41.5 | 16 |
| 15 | 11.86 | 33.8 | 12 |
| 20 | 16.5 | 26.2 | 12 |
| 25 | 20.7 | 18.5 | 10 |
| 30 | 25 | 9 | 8 |
Specification of Products
| Product NＯ. | specification |
|---|---|
| RF3602A |  |
