 MV-CU020-80GC

제품목록  E-Mail 견적문의  SMS 견적문의
제조사 HIKROBOT
모델명 MV-CU020-80GC
다운로드

     제품스펙

    2MP Area Scan Camera, GigE, SC235, Color

     제품상세

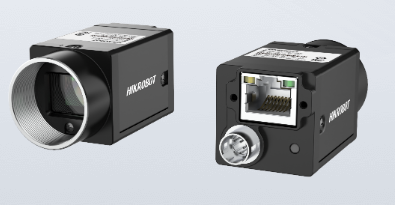

    MV-CU020-80GC
    2MP Area Scan Camera, GigE, SC235, Color

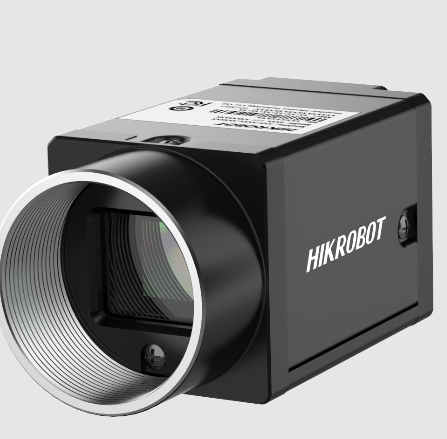

    MV-CU013-80GM pic.png



     Introduction



    Key Feature

    • Adopts low consumption design with stable performance.

    • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.

    • Supports customized ROI and supports horizontal and vertical reverse image output.

    • Adopts compact design to meet small spatial requirements.

    • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.



    Available Model

    MV-CU020-80GC


    Dimension

    Dimension

    CU GigE dwg.png

    *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.



    Specifications

    Model Product Model MV-CU020-80GC
    Type 2MP Area Scan Camera, GigE, SC235, Color
    Performance Sensor type CMOS, global shutter
    Sensor model SC235
    Pixel size 3.45 μm × 3.45 μm
    Sensor size 1/2.6"
    Resolution 1600 × 1200
    Max. frame rate 53.5 fps @1600 × 1200 Bayer BG 8
    Dynamic range 60.4 dB
    SNR 40.1 dB
    Gain 0 dB to 24 dB
    Exposure time 45 μs to 1 sec
    Exposure mode Off/Once/Continuous exposure mode
    Mono/color Color
    Pixel format Bayer BG 8/10/10Packed/12/12Packed
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse image Supports horizontal and vertical reverse image output
    Electrical feature Data interface Gigabit Ethernet, compatible with Fast Ethernet
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power supply 9 VDC to 24 VDC, PoE is optional
    Power consumption Typ. 1.9 W@12 VDC
    Mechanical Lens mount C-mount
    Dimension 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
    Weight Approx. 97 g (0.2 lb.)
    Ingress protection IP30 (under proper lens installation and wiring)
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    Humidity 20% to 95% RH, non-condensing
    General Client software MVS or third-party software meeting with GigE Vision Protocol
    Operating system 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
    Compatibility GigE Vision V2.0, GenICam
    Certification CE, RoHS, KC
