 MV-CU200-20GM

제품목록  E-Mail 견적문의  SMS 견적문의
제조사 HIKROBOT
모델명 MV-CU200-20GM
다운로드

     제품스펙

    20MP Area Scan Camera, GigE, AR2020, Mono

     제품상세

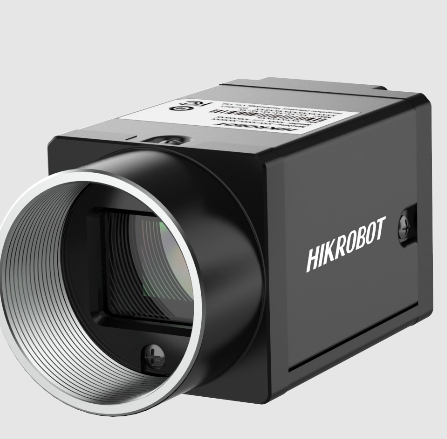

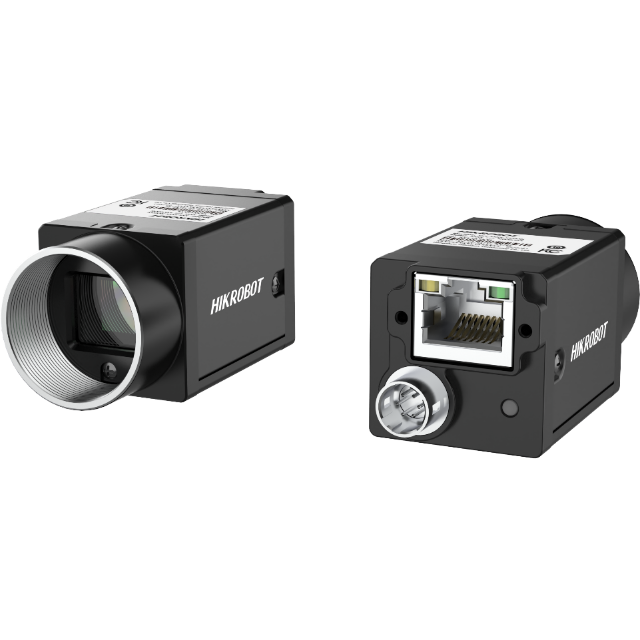

    MV-CU200-20GM

    20MP Area Scan Camera, GigE, AR2020, Mono






    Introduction

    Key Feature

    • Adopts low power consumption design with stable performance.

    • Supports auto and manual adjustment of gain, exposure time, etc.

    • Supports hardware trigger, software trigger, free run, etc.

    • Adopts GigE interface and max. transmission distance of 100 meters without relay.

    • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.



    Available Model

    MV-CU200-20GM


    Dimension

    CU GigE dwg.png

    *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.



    Specifications

    Model Product Model MV-CU200-20GM
    Type 20MP Area Scan Camera, GigE, AR2020, Mono
    Performance Sensor type CMOS, rolling shutter
    Sensor model AR2020
    Pixel size 1.4 μm × 1.4 μm
    Sensor size 1/1.8"
    Resolution 5120 × 3840
    Max. frame rate 5.9 fps @ 5120 × 3840 Mono 8
    Dynamic range 61 dB
    SNR 39 dB
    Gain 0 dB to 48 dB
    Exposure time 53 μs to 10 sec
    Exposure mode Off/Once/Continuous exposure mode
    Mono/color Mono
    Pixel format Mono 8/10/10 Packed/12/12 Packed
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Not supported
    Reverse image Supports horizontal and vertical reverse image output
    Electrical feature Data interface Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power supply 9 VDC to 24 VDC; PoE is optional
    Power consumption Typ. 2.0 W @ 12 VDC
    Mechanical Lens mount C-mount
    Dimension (without lens) 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
    Weight Approx. 100 g (0.2 lb.)
    Ingress protection IP30 (under proper lens installation and wiring)
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
    Humidity 20% RH to 95% RH, no condensation
    General Client software MVS or third-party software meeting with GigE Vision Protocol
    Operating system 32/64-bit Windows XP/7/10/11, 32/64-bit Linux and 64-bit MacOS
    Compatibility GigE Vision V2.0, GenICam
    Certification CE, RoHS, KC
