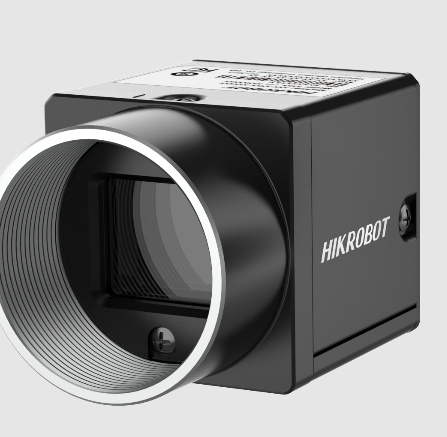

 MV-CU120-10UM

제품목록  E-Mail 견적문의  SMS 견적문의
제조사 HIKROBOT
모델명 MV-CU120-10UM
다운로드

     제품스펙

    12MP Area Scan Camera, USB3, IMX226, Mono

     제품상세

    MV-CU120-10UM

    12MP Area Scan Camera, USB3, IMX226, Mono










     Introduction

    Key Feature

    • Adopts brand new design to reduce power consumption.

    • Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.

    • Supports customized ROI, horizontal and vertical reverse image output.

    • Adopts compact design for small spatial installation.

    • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.



    Available Model

    MV-CU120-10UM


    DimensionCU USB dwg.png

    *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.







    Specifications

    Model Product Model MV-CU120-10UM
    Type 12MP Area Scan Camera, USB3, IMX226, Mono
    Performance Sensor type CMOS, rolling shutter
    Sensor model Sony® IMX226
    Pixel size 1.85 μm × 1.85 μm
    Sensor size 1/1.7"
    Resolution 4024 × 3036
    Max. frame rate 29.2 fps @4024 × 3036 Mono 8
    Dynamic range 69.4 dB
    SNR 40.3 dB
    Gain 0 dB to 24 dB
    Exposure time 20 μs to 0.5 sec
    Exposure mode Off/Once/Continuous exposure mode, supports Global Reset and Rolling
    Mono/color Mono
    Pixel format Mono 8/10/10Packed/12/12Packed
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse image Supports horizontal and vertical reverse image output
    Electrical feature Data interface USB3.0, compatible with USB2.0
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power supply 9 VDC to 24 VDC, supports USB3.0 power supply
    Power consumption Typ. 1.9 W@5 VDC (USB3.0 provides power supply)
    Mechanical Lens mount C-mount
    Dimension 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
    Weight Approx. 76 g (0.2 lb.)
    Ingress protection IP40 (under proper lens installation and wiring)
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    Humidity 20% to 80% RH, non-condensing
    General Client software MVS or third-party software meeting with USB3 Vision Protocol
    Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
    Compatibility USB3 Vision, GenlCam
    Certification CE, RoHS, KC
