제조사	Basler
모델명	acA1440-220uc
다운로드

제품스펙

The Basler acA1440-220uc USB 3.0 camera with the Sony IMX273 CMOS sensor delivers 227 frames per second at 1.6 MP resolution.

제품상세

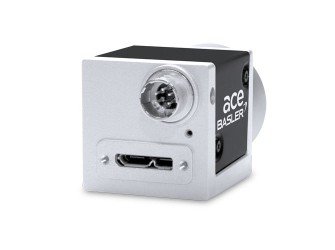

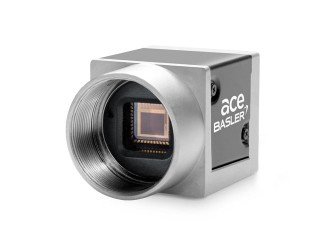

acA1440-220uc - Basler ace

The Basler acA1440-220uc USB 3.0 camera with the Sony IMX273 CMOS sensor delivers 227 frames per second at 1.6 MP resolution.

General Information
	Order Number	107653
	Product Line	ace U
	Price	For pricing, please use the request cart to get a quote.
	Shipment	For information about shipping please use the request cart.

Sensor
	Sensor Vendor	Sony
	Sensor	IMX273
	Shutter	Global Shutter
	Sensor Format	1/2.9"
	Sensor Type	CMOS
	Sensor Size	5 mm x 3.7 mm
	Resolution (HxV)	1440 px x 1080 px
	Resolution	1.6 MP
	Pixel Size (H x V)	3.45 µm x 3.45 µm
	Frame Rate	227 fps
	Mono/Color	Color

Camera Data
	Interface	USB 3.0
	Pixel Bit Depth	10 / 12 bits
	Synchronization	hardware trigger free-run software trigger
	Exposure Control	programmable via the camera API hardware trigger
	Digital Input	1
	Digital Output	1
	General Purpose I/O	2
	Power Supply	Via USB 3.0 interface
	Power Requirements (typical)	3.3 W

Housing
	Housing Type	Box
	Housing Size (L x W x H)	29.3 mm x 29 mm x 29 mm
	Lens Mount	C-mount
	Operating Temperature	0 - 50°C
	Weight (typical)	80g

Conformity
	Conformity	RoHS FCC Class B CE IP30 GenICam USB3 Vision UL KC EAC

Features Click on a feature to open the corresponding topic in the Basler Product Documentation. Please note that certain features will be available at a later stage and are marked with “coming soon”.
	Chunks	CRC Checksum Counter Value Exposure Time Gain Line Status All Sequencer Set Active Timestamp
	Color Creation and Enhancement	Balance White (Manual White Balance) Balance White Auto (Automatic White Balance) Color Adjustment (6-axis Hue/Saturation) Light Source Presets
	Event Reporting	Critical Temperature Exposure End Frame Burst Start Frame Burst Start Overtrigger Frame Burst Start Wait Frame Start Frame Start Overtrigger Frame Start Wait Over Temperature
	I/O Control and Line Source Signals	Acquisition Trigger Wait / Frame Burst Trigger Wait Debouncer Exposure Active Frame Trigger Wait Minimum Output Pulse Width Timer Active User Output
	Image Acquisition Control	Acquisition Status Frame Burst Start Trigger Frame Start Trigger Trigger Delay Triggered by Hardware Triggered by Software
	Light Control Features	Basler SLP
	Miscellaneous	Device Information Parameters Device Temperature Remove Parameter Limits User Defined Values User Sets (Configuration Sets)
	PGI	5x5 Debayering Color-Anti-Aliasing Denoising Improved Sharpness
	Pixel Formats	BGR 8 Bayer 12 Bayer 12p (Bayer 12 Packed) Bayer 8 Mono 8 RGB 8 YCbCr422_8 (YUV422_8)
	Standard Features	Auto Function Profile Black Level Digital Shift Exposure Auto Exposure Mode: Timed (Control via API) Exposure Mode: Trigger Width (Control via External Trigger) Gain Gain Auto Gamma Correction Lookup Table (LUT) Region of Interest (ROI) Reverse X (Horizontal Mirroring) Reverse Y (Vertical Mirroring) Sequencer Stacked ROI Test Images Ultra Short Exposure Time Mode

Mechanical drawing for acA1440-220uc

Mechanical drawings provide the detailed measurements of a camera product. Click on the link below to download the mechanical drawing for acA1440-220uc.

Download now Basler ace - acA1440-220uc
