제조사 Basler
모델명 acA1440-220um
다운로드

     제품스펙

    The Basler acA1440-220um USB 3.0 camera with the Sony IMX273 CMOS sensor delivers 227 frames per second at 1.6 MP resolution.

     제품상세

    acA1440-220um - Basler ace

    The Basler acA1440-220um USB 3.0 camera with the Sony IMX273 CMOS sensor delivers 227 frames per second at 1.6 MP resolution.

    USB3 Vision PGI

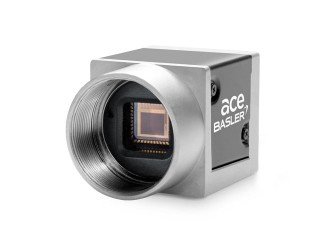

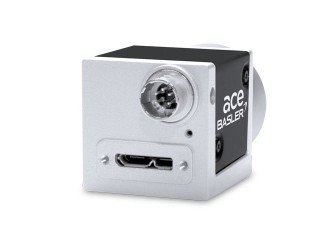

    ace_USB3_Sensor-small_f_l_670x500px__x250.jpg ace_USB3_b_l_670x500px__x250.jpg


    General Information

      Order Number 107652
      Product Line ace U
      Price For pricing, please use the request cart to get a quote.
      Shipment For information about shipping please use the request cart.

    Sensor

      Sensor Vendor Sony
      Sensor IMX273
      Shutter Global Shutter
      Sensor Format 1/2.9"
      Sensor Type CMOS
      Sensor Size 5 mm x 3.7 mm
      Resolution (HxV) 1440 px x 1080 px
      Resolution 1.6 MP
      Pixel Size (H x V) 3.45 µm x 3.45 µm
      Frame Rate 227 fps
      Mono/Color Mono

    EMVA Data

      EMVA Quantum Efficiency (typical) 62.7 %
      Dark Noise (typical) 2.8 e¯
      Saturation Capacity (typical) 10.5 ke¯
      Dynamic Range (typical) 71.5 dB
      Signal-to-Noise Ratio (typical) 40.2 dB

    Camera Data

      Interface USB 3.0
      Pixel Bit Depth 10 / 12 bits
      Synchronization
    • hardware trigger
    • free-run
    • software trigger
      Exposure Control
    • programmable via the camera API
    • hardware trigger
      Digital Input 1
      Digital Output 1
      General Purpose I/O 2
      Power Supply
    • Via USB 3.0 interface
      Power Requirements (typical) 3.3 W

    Housing

      Housing Type Box
      Housing Size (L x W x H) 29.3 mm x 29 mm x 29 mm
      Lens Mount
    • C-mount
      Operating Temperature 0 - 50°C
      Weight (typical) 80g

    Conformity

      Conformity
    • RoHS
    • FCC Class B
    • CE
    • IP30
    • GenICam
    • USB3 Vision
    • UL
    • KC
    • EAC

    Features

      Chunks
      Event Reporting
      I/O Control and Line Source Signals
      Image Acquisition Control
      Light Control Features
      Miscellaneous
      PGI
      Pixel Formats
      Standard Features

    Mechanical drawing for acA1440-220um

    Mechanical drawings provide the detailed measurements of a camera product. Click on the link below to download the mechanical drawing for acA1440-220um.

    Download now Basler ace - acA1440-220um
