    The Basler acA5472-5gc GigE camera with the Sony IMX183 CMOS sensor delivers 5 frames per second at 20.0 MP Resolution.

     제품상세

    acA5472-5gc - Basler ace

    The Basler acA5472-5gc GigE camera with the Sony IMX183 CMOS sensor delivers 5 frames per second at 20.0 MP Resolution.

    GigE Vision PGI PTP

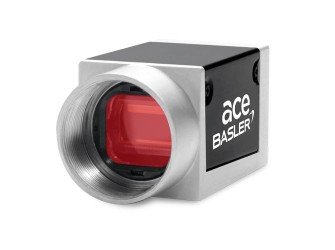

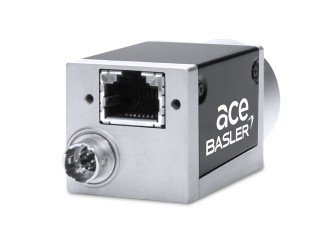

    ace_GigE_Sensor-big_Filter_f_l_670x500px__x250.jpg ace_GigE_b_l_670x500px__x250.jpg

    General Information

      Order Number 107770
      Product Line ace U
      Price For pricing, please use the request cart to get a quote.
      Shipment For information about shipping please use the request cart.

    Sensor

      Sensor Vendor Sony
      Sensor IMX183
      Shutter Rolling Shutter
      Sensor Format 1"
      Sensor Type CMOS
      Sensor Size 13.1 mm x 8.8 mm
      Resolution (HxV) 5472 px x 3648 px
      Resolution 20 MP
      Pixel Size (H x V) 2.4 µm x 2.4 µm
      Frame Rate 5 fps
      Mono/Color Color

    Camera Data

      Interface GigE
      Pixel Bit Depth 10/12 bits bits
      Synchronization
    • free-run
    • hardware trigger
    • software trigger
      Exposure Control
    • programmable via the camera API
    • hardware trigger
      Digital Input 1
      Digital Output 1
      General Purpose I/O 1
      Power Supply
    • PoE or 12-24 VDC
      Power Requirements (typical) 2.8 W
      Power Consumption PoE 3.1 W

    Housing

      Housing Type Box
      Housing Size (L x W x H) 42 mm x 29 mm x 29 mm
      Lens Mount
    • C-mount
      Operating Temperature 0 - 50°C
      Weight (typical) 90g

    Conformity

      Conformity
    • RoHS
    • GigE Vision
    • FCC Class B
    • CE
    • GenICam
    • UL
    • KC
    • EAC

    Features

      Chunks
      Color Creation and Enhancement
      Event Reporting
      GigE Vision 2.0
      I/O Control and Line Source Signals
      Image Acquisition Control
      Light Control Features
      Miscellaneous
      PGI
      Pixel Formats
      Standard Features

    Mechanical drawing for acA5472-5gc

    Mechanical drawings provide the detailed measurements of a camera product. Click on the link below to download the mechanical drawing for acA5472-5gc.

    Download now Basler ace - acA5472-5gc
