    MV-CH1510-11XM

    151 MP CMOS CoaXPress Area Scan Camera

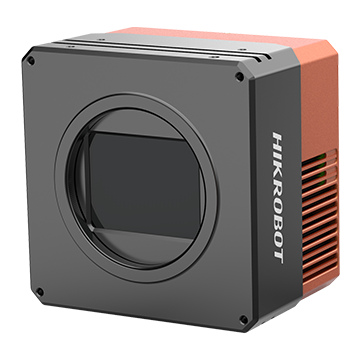

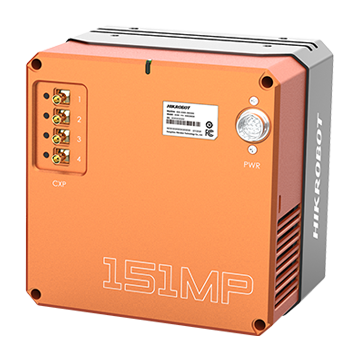

    MV-CH1510-11XM LP.pngMV-CH1510-11XM LP 02.png



    Introduction



    Key Feature

    • Resolution of 14208 × 10640, and pixel size of 3.76 µm × 3.76 µm

    • Adopts rolling shutter CMOS to provide high dynamic range, SNR, and high-quality image

    • Adopts CoaXPress interface to transmit data

    • Supports Off, Once, Continuous exposure mode, and global reset

    • Adopts TEC to keep the camera’s sensor temperature around environment temperature

    • Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard


    Available Model

    MV-CH1510-11XM-M72-TF


    Dimension


    *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.


    Product Status：Pre-release



    Specifications



    Model Model MV-CH1510-11XM
    Type 151 MP CMOS CoaXPress Area Scan Camera
    Camera Sensor type Rolling shutter CMOS
    Sensor IMX411
    Pixel size 3.76 µm × 3.76 µm
    Sensor size 66.7 mm
    Resolution 14208×10640
    Max. Frame Rate 6.2 fps
    Dynamic range 78.7 dB
    SNR 45 dB
    Gain 0 dB to 30 dB
    Exposure time 15 μs to 10 s
    Sensor shutter mode Supports Global Reset and Rolling
    Exposure mode Off/Once/Continuous exposure mode
    Mono/Color Mono
    Pixel format Mono 8 /10/12/16
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Not support
    Reverse image Supports horizontal reverse image output
    Electrical features Data Interface CoaXPress
    Digital I/O 12-pin Hirose connector provides I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
    Power supply 24 VDC
    Power consumption Approx. 21 W@24 VDC (Non-TEC cooling mode) Approx. 55 W@24 VDC (TEC cooling mode)
    Mechanical Lens mount M72-Mount, optical back focal length 19.55 mm (0.8")
    Dimension 120 mm × 120 mm × 84.6 mm (4.7" × 4.7" × 3.3")
    Weight Approx. 1.9 kg (4.2 lb.)
    Ingress protection IP40 (under proper lens installation and wiring)
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    Humidity 20% to 95% RH, without condensation
    General Client software Frame grabber software meeting with CoaXPress Protocol
    Operating system 32/64-bit Windows 7/10 with 8 GB memory or above
    Compatibility CoaXPress, GenlCam
    Certification CE, FCC, RoHS, KC
