제조사 HIK ROBOT
모델명 MV-CH250-90TC
다운로드

     제품스펙

    25 MP 1.1" CMOS 10 GigE Area Scan Camera

     제품상세

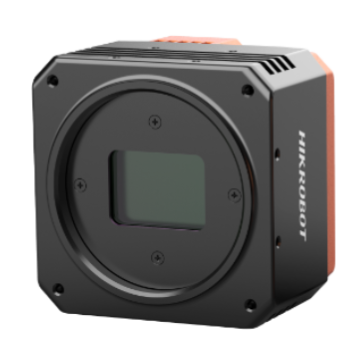

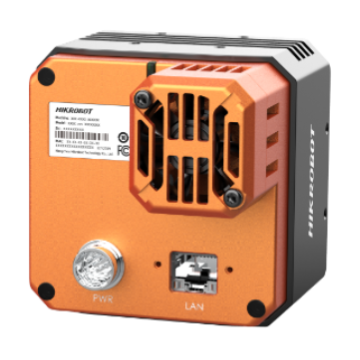

    MV-CH250-90TC

    25 MP 1.1" CMOS 10 GigE Area Scan Camera

    MV-CH250-90TC.png 20210810081424423.png

    Introduction



    Key Feature

    • Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.

    • Adopts 10 GigE interface providing maximum transmission distance of 100 meters.

    • Supports adjustment for exposure time, gain,Look-Up Table (LUT), Gamma correction, etc.

    •  Mounting holes on panels for flexible installation.

    • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.


    Available Model

    Color M58-mount with fan: MV-CH250-90TCM58S-NF
    Color C-mount with fan: MV-CH250-90TC-C-NF


    Dimension









    Specifications

    Model Model MV-CH250-90TC
    Type 25 MP 1.1" CMOS 10 GigE Area Scan Camera
    Camera Sensor type CMOS, global shutter
    Sensor GMAX0505
    Pixel size 2.5 µm × 2.5 µm
    Sensor size 1.1"
    Resolution 41.5 fps
    Max. Frame Rate 41.5 fps
    Dynamic range 63 dB
    SNR 36 dB
    Gain 2.0x to 5.0x
    Exposure time 13 μs to 10 sec
    Exposure mode Off/Once/Continuous exposure mode
    Mono/Color Color
    Pixel format Mono 8/10/12, Bayer 8/10/10p/12/12p,
    YUV422 8, YUV422_8_YUYV, RGB 8, BGR 8
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse image Supports horizontal and vertical reverse image output
    Electrical features Data Interface 10GigE
    Digital I/O 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
    Power supply 9 VDC to 24 VDC
    Power consumption Typ. 10.0 W@12 VDC
    Mechanical Lens mount C-mount, optical back focal length 17.52 mm (0.7")
    M58-mount, optical back focal length 11.48 mm (0.5")
    Dimension 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
    Weight C-mount camera: approx. 590 g (1.3 lb.)
    M58-mount camera: approx. 550 g (1.2 lb.)
    Ingress protection IP40 (under proper lens installation and wiring)
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
    Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    Humidity 20% to 95% RH, non-condensing
    General Client software MVS or third-party software meeting with GigE Vision Protocol
    Operating system 32/64-bit Windows XP/7/10
    Compatibility GigE Vision V2.0, GenlCam
    Certification CE, FCC, RoHS, KC
