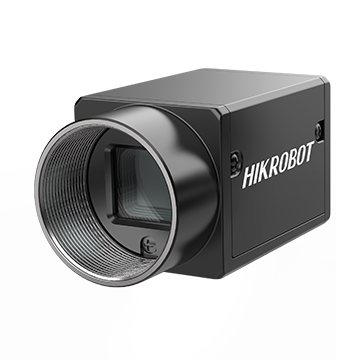

MV-CE013-50GC
| 제조사 | HIKVISION |
|---|---|
| 모델명 | MV-CE013-50GC |
| 다운로드 |
|
제품스펙
제품상세
1.3MP, 1/3" CCD, GigE Camera
Introduction
Key Feature
-
Adopts GigE interface and max. transmission distance of 100 meters without relay
-
Up to 128 MB local memory for burst transmission and retransmission
-
Supports auto exposure control, LUT, Gamma correction, and etc.
-
Supports hardware trigger, software trigger, and etc.
-
Supports auto white balance and better color correction with excellent image interpolation algorithm
-
Compatible with GigE Vision V1.2 Protocol and the third-party software based on the protocol
Available Model
Color Camera: MV-CE013-50GC
Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Specifications
| Model | Model | MV-CE013-50GC |
| Type | 1.3 MP, 1/3" CCD, GigE Area Scan Camera | |
| Camera | Sensor type | CCD, global shutter |
| Sensor | RJ33 | |
| Pixel size | 3.75 µm × 3.75 µm | |
| Sensor size | 1/3" | |
| Resolution | 1280 × 960 | |
| Max. Frame Rate | 30 fps | |
| Dynamic range | 60 dB | |
| SNR | 37 dB | |
| Gain | 0 dB to 20 dB | |
| Exposure time | 34 μs to 1 s | |
| Shutter mode | Off/Once/Continuous exposure mode | |
| Mono/Color | Mono | |
| Pixel format | Mono 8/10/12, Bayer GR 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed, RGB8 | |
| Binning | Not support | |
| Decimation | Not support | |
| Reverse image | Supports horizontal reverse image output | |
| Image buffer | 128 MB | |
| Electrical features | Data Interface | GigE |

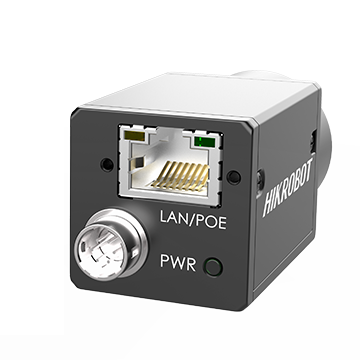

| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 12 VDC, supports PoE | |
| Power consumption | Approx. 2.6 W@12 VDC | |
| Mechanical | Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") | |
| Weight | Approx. 68 g (0.15 lb.) | |
| Ingress protection | IP30 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, without condensation | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V1.2, GenICam | |
| Certification | CE, FCC, RoHS, KC |
