5MP Area Scan Camera, USB3, GMAX2505, Mono

 제품상세

MV-CU050-90UM

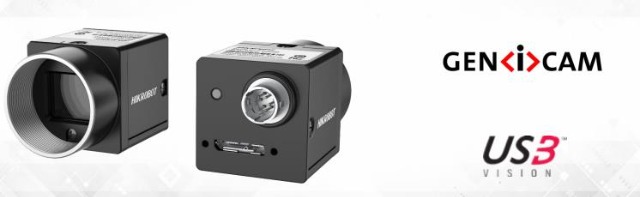

5MP Area Scan Camera, USB3, GMAX2505, Mono







 Introduction

Key Feature



  • Adopts brand new design to reduce power consumption.

  • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.

  • Supports customized ROI, horizontal and vertical reverse image output.

  • Adopts compact design for flexible installation.

  • Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.



Available Model

MV-CU050-90UM


Dimension


*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.



Specifications

Mechanical Dimension 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Ingress protection IP30 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Lens mount C-Mount
Weight Approx. 100 g (0.2 lb.)
Humidity 20% to 80% RH, non-condensing
Model Product Model MV-CU050-90UM
Type 5MP Area Scan Camera, USB3, GMAX2505, Mono
Performance Exposure mode Off/Once/Continuous exposure mode
Gain 0 dB to 12 dB
Pixel size 2.5 μm × 2.5 μm
Reverse image Supports horizontal and vertical reverse image output
Dynamic range 63.9 dB
Sensor type CMOS, global shutter
Binning Supports 1 × 1, 2 × 2, 4 × 4
Resolution 2600 × 2160
Mono/color Mono
Exposure time 3 μs to 10 sec
Sensor size 1/2"
Sensor model GMAX2505
SNR 37 dB
Max. frame rate 59.8 fps @2600 × 2160 Mono 8
Decimation Supports 1 × 1, 2 × 2, 4 × 4
Pixel format Mono 8/10/10Packed/12/12Packed
General Client software MVS or third-party software meeting with USB3 Vision Protocol
Compatibility USB3 Vision, GenlCam
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Certification CE, FCC, RoHS, KC
Electrical feature Power consumption Typ. 2.1 W@5 VDC (USB3.0 provides power supply)
Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply 9 VDC to 24 VDC, supports USB3.0 power supply
Data interface USB3.0
