제조사 HIK ROBOT
모델명 MVL-HT-1-65
다운로드

     제품스펙

    1x 65mm 1/2” TELECENTRIC LENS

     제품상세

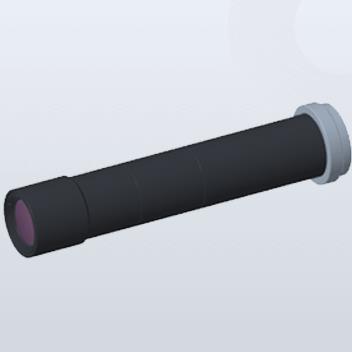

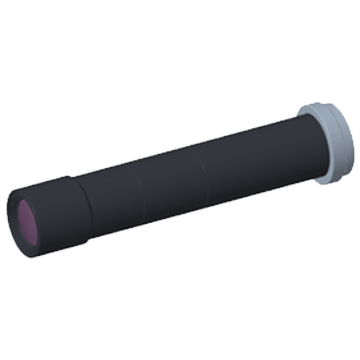

    MVL-HT-1-65

    1x 65mm 1/2” TELECENTRIC LENS

    20210113063923181.png 20210113063915684.png

    Introduction



    Key Feature

    • High resolution and uniformity of image definition

    • Low optical distortion and high telecentricity, more suitable for high precision measurement application

    • Excellent anti-vibration performance and stability performance in temperature variation

    • Image size compatible with 1/1.8"


    Available Model

    MVL-HT-1-65


    Dimension


    *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.



    Specifications

    Model Model MVL-HT-1-65
    Type 1x 65mm 1/2” TELECENTRIC LENS
    Parameter Magnification 1x
    Working Distance 65±2mm
    Depth of Field 0.88mm
    Resolution 7.38µm
    Optical Distortion < 0.1%
    Telecentricity < 0.1°
    F-Number 11
    Object Space NA 0.045
    Image Size Φ8.4mm
    Object-image Distance 199.44±2mm
    Field of View D : 8mm H : 6.4mm V : 4.8mm
    Mount C-Mount
    Dimension 117mm×24mm
    Operating Temperature -10~50℃
    Weight 93g
