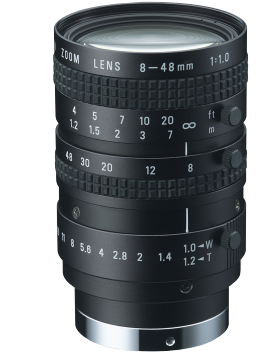

VGA Lens (Manual Zoom Lens)

FL-HC6Z0810-VG

Format size		1/2, 1/3" format
Focal length		8-48 mm
Maximum aperture ratio		1:1.0-1.2
Iris range		1.0-22
Mount		C
Horizontal angle of view	1/3" format	33.0-5.8°
	1/2" format	43.3-7.7°
	1/1.8" format	-
	2/3" format	-
Minimum object distance		0.75 m
Back focal length		13.65 mm
Filter size		55 P=0.75 mm
Dimensions		φ57×95 mm
Weight		430 g
Remarks		Manual Iris, Lock screws

Download

• SPEC Ricoh Co., Ltd.

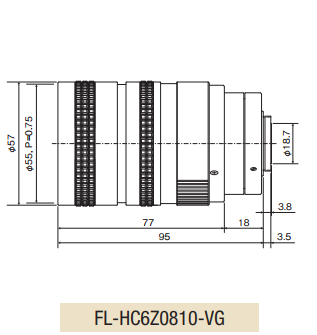

• DrawingsRicoh Co., Ltd
