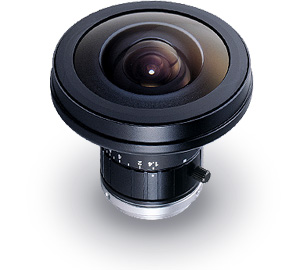

■Fisheye lenses
FE185 series
Super wide-angle lenses with a 185° field of view compatible with 5-megapixel high resolution sensors
렌즈 제품소개
- >
- 제품소개
- >
- 렌즈
- >
- Fujinon 후지논
- >
- 5MP 2/3"
FE185 series
| 제조사 | FUJINON |
|---|---|
| 모델명 | FE185 series |
| 다운로드 |
|
제품스펙
Fisheye lenses
제품상세
Main features
Two models for different image circles
The f θ method, which is the most suitable to display images uniformly,
makes processing easily by graphics software.
The FE185C086HA-1 is compatible with 1" cameras.
Simulation images taken with FE185C086HA-1
The FE185C057HA-1 is compatible with 2/3" cameras.
Simulation images taken with FE185C057HA-1
High resolution for 5MP sensors
FE185C057HA-1: 3.45μm pixel pitch
FE185C086HA-1: 5μm pixel pitch
Metal mount with high durability and accuracy (C-mount)
Manual iris
Locking screws for fixing iris is supplied as standard equipment.
Made in Japan
Lineup
-
FE185C086HA-1
Focal length [mm] 2.7 Iris range F1.8 - F16 Mount C-mount Operation focus Fixed iris Manual Angle of view 1” 185.0° x 185.0° (Ø8.6mm) 2/3” 185.0° x 140.6° 1/2” 136.3° x 102.3° Shortest shooting distance* (m) 0.2 Weight (g) 160 Working temperature -10°C - +50°C -
FE185C057HA-1
Focal length [mm] 1.8 Iris range F1.4 - F16 Mount C-mount Operation focus Fixed iris Manual Angle of view 2/3” 185.0° x 185.0° (Ø5.7mm) 1/2” 185.0° x 154.1° 1/3” 154.1° x 115.4° Shortest shooting distance* (m) 0.1 Weight (g) 135 Working temperature -10°C - +50°C
* From front of lens barrel
