TF4DA-8
| 제조사 | Fujinon |
|---|---|
| 모델명 | TF4DA-8 |
| 다운로드 |
|
제품스펙

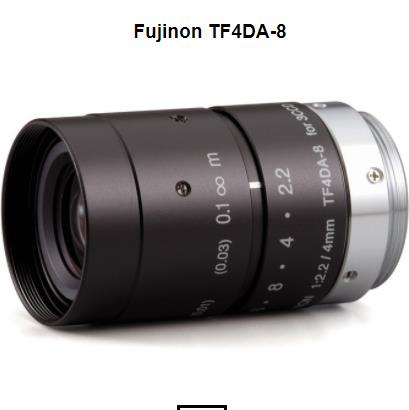

FUJINON TF4DA-8 1/3" 4MM F2.2 MANUAL IRIS C-MOUNT LENS FOR 3 CCD CAMERAS
제품상세
FUJINON TF4DA-8 1/3" 4MM F2.2 MANUAL IRIS C-MOUNT LENS FOR 3 CCD CAMERAS
Format: 1/3"
Focal Length: 4mm
Aperture: F2.2
Iris Type: Manual Iris
Mount: C-Mount Lens
Additional Information
Special design for optimizing the image quality of 3CCD cameras. Low-distortion design achieving accurate image input. Compact, lightweight and robust design, supporting various systems. Faithful color reproduction for 3CCD cameras, best suited for advanced monitoring applications.
| Mount | C | |
|---|---|---|
| Focal length | 4 mm | |
| Focus | Manual | |
| Iris Range | F2.2 - F16 * Close | |
| Iris | Manual | |
| Back Focal Distance (In Air) | 14.61 mm | |
| Exit Pupil Position (From Image Plane) | 88 mm | |
| Object Dimensions at M.O.D. | 131 × 98 mm | |
| Angular Field of View | 61°56′ × 48°27′ | |
| Focusing Range (From Front of the Lens) | ∞ - 0.1 m | |
| Filter Thread | M27 × 0.5 mm | |
| Mass | 70 g | |
FUJINON Machine Vision Lenses Catalog (PDF:7.1MB)
