Solios XA [SOL 6M 4A*]
| 제조사 | Matrox |
|---|---|
| 모델명 | Solios XA [SOL 6M 4A*] |
| 다운로드 |
제품스펙

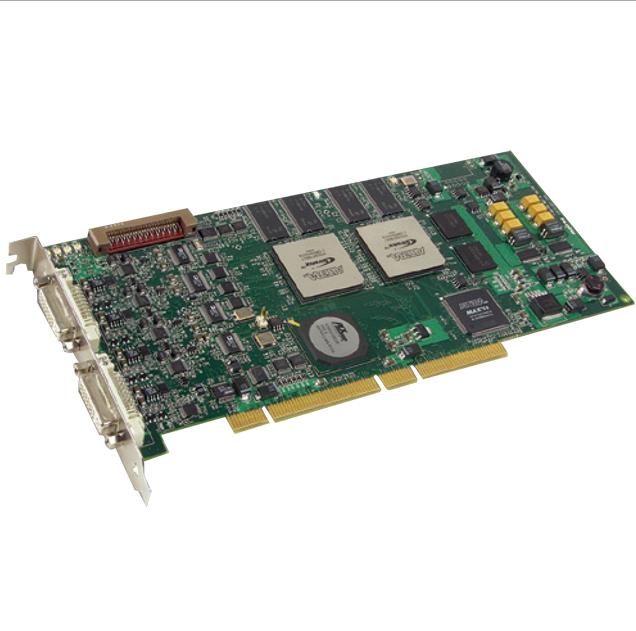

Analog PCI-X® frame grabber with four independent inputs, 64 MB DDR SDRAM and cable adapter board (LVDS aux. I/O).
제품상세
Matrox Solios eA/XA
Matrox Solios eA/XA is a high fidelity analog frame grabber with high-performance PCIe® x4 / PCI-X® interface.
Key Features
- PCIe x1 or PCIe x4 (eA), or PCI-X (XA) card
- up to four fully independent inputs
- 10-bit A/D converters
- sampling rate up to 65 MHz
- video synchronization and PLL lock detection
- 64 MB acquisition buffer
- serial communication ports mapped as PC COM ports
- programmed using Matrox Imaging Library (MIL) sold separately
- supports 32-bit Windows® XP, 32/64-bit Windows 7/8.1/10 and 32/64-bit Linux®
-
- 메뉴얼 다운로드 :Matrox Solios Installation and Hardware Reference Manual (PDF)
-
Matrox Solios eA/XA
데이터시트 다운로드
