프레임그래버 제품소개

제조사 Matrox
모델명 RAD EV 1G CLSF
다운로드

     제품스펙

    Matrox Radient eV-CL single-Full Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
    connectors. Includes cable adaptor (auxiliary I/O).

     제품상세

    Matrox Rapixo eV-CL DATA SHEET



    Frame Grabbers

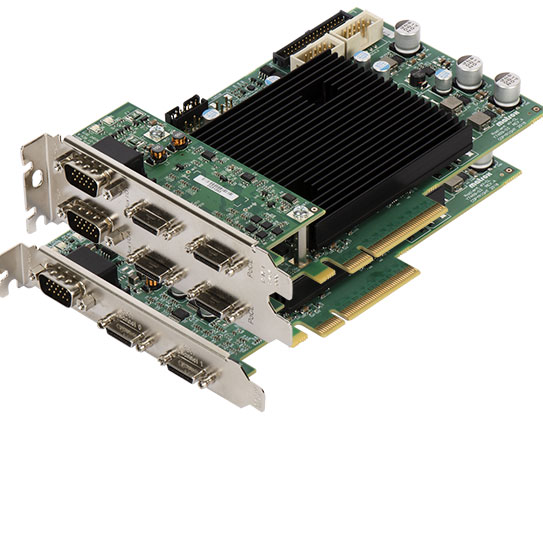

    Matrox Radient eV-CL

    radient-eV-CL 02.jpg





    Feature-packed high-performance Camera Link frame grabber series



    Matrox® Radient eV-CL is a series of Camera Link® frame grabbers with the most comprehensive features currently available in the industry. The frame grabber line-up offers reliable image acquisition, extended cable length support, and high frame-rate image capture that will extend the effectiveness of the Camera Link standard for years to come.



    Specifications



    Matrox Radient eV-CL

    Hardware

    Host interface

    Interconnect

    PCIe 2.1 x4 / x8

    Camera/video interface

    Standard

    Camera Link 2.1


    Configuration

    Two (2) independent Base Camera Link ports (dual-Base)

    One (1) Medium/Full Camera Link port (single-Full)

    Up to 80-bit mode

    Four (4) independent Base Camera Link ports (quad-Base)

    Two (2) independent Medium/Full Camera Link ports (dual-Full)

    Up to 80-bit mode

    Speeds

    20 MHz to 85 MHz Camera Link clock

    Connectors

    HDR26 (mini Camera Link)

    Power output

    PoCL with SafePower


    Miscellaneous

    Extended Camera Link cable length support

    Supports frame and line scan sources

    Memory

    Type

    DDR3 SDRAM

    Quantity

    512 MB or 1 GB

    Purpose

    Image buffering and preprocessing

    Image processing capabilities

    Onboard

    look-up tables (LUTs)

    8-/10-/12-bit support

    Onboard

    Bayer interpolation

    GB, BG, GR, and RG pattern support

    Onboard
    color space
    conversion

    Input formats: 8-/16-bit mono/Bayer, 24-/48-bit packed BGR

    Output formats: 8-/16-bit mono, 24-/48-bit packed/planar BGR, 16-bit YUV, 32-bit BGRa

    I/Os


    Types

    Three (3) TTL configurable auxiliary I/Os per connector

    Two (2) LVDS auxiliary inputs per connector

    One (1) LVDS auxiliary output per connector

    Two (2) opto-isolated auxiliary inputs per connector


    Connectors

    One (1) / two (2) DBHD-15 male GPIO connector(s) (dual-Base and single-Full / quad-Base and dual-Full)

    One (1) / two (2) optional additional DBHD-15 male GPIO connector(s) (dual-Base / quad-Base)


    I/Os synchronization

    One (1) quadrature rotary encoder per Camera Link port

    Four (4) 16-bits timer

    Physical

    Form factor

    Half-length, full-height, PCIe add-in card

    Dimensions
    (L x W x H)

    167.6 x 111.1 x 18.7 mm (6.6 x 4.38 x 0.74 in)

    Additional Camera Link module for quad-Base / dual-Full: 45.0 x 106.65 x 18.7 mm (1.77 x 4.20 x 0.74 in)

    Environmental

    Operating temperature

    0°C to 55°C (32°F to 131°F)

    Relative humidity

    Up to 95% (non-condensing)

    Certifications


    Electromagnetic
    compatibility

    FCC Class A

    CE Class A

    RoHS-compliant

    Software

    Compatible software

    MIL X


    Software drivers

    MIL X drivers for Windows 7 (32-/64-bit)

    MIL X drivers for Windows 10 (32-/64-bit)

    MIL X driver for Linux (64-bit)

    Camera
    communication

    GenICam CLProtocol 1.2

    GenICam GenCP 1.3

    Licensing provisions

    MIL X license fingerprint and storage


      •

    Ordering Information



    Part number Description

    Hardware


    RAD EV 5M CLDB


    Matrox Radient eV-CL dual-Base Camera Link PCIe 2.1 x4 frame grabber with 512 MB DDR SDRAM and HDR26 (mini Camera Link)
    connectors. Includes cable adaptor (auxiliary I/O).


    RAD EV 5M CLSF


    Matrox Radient eV-CL single-Full Camera Link PCIe 2.1 x4 frame grabber with 512 MB DDR SDRAM and HDR26 (mini Camera Link)
    connectors. Includes cable adaptor (auxiliary I/O).


    RAD EV 1G CLDB


    Matrox Radient eV-CL dual-Base Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
    connectors. Includes cable adaptor (auxiliary I/O).


    RAD EV 1G CLSF


    Matrox Radient eV-CL single-Full Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
    connectors. Includes cable adaptor (auxiliary I/O).


    RAD EV 1G CLQB


    Matrox Radient eV-CL quad-Base Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
    connectors. Includes cable adaptor (auxiliary I/O).


    RAD EV 1G CLDF


    Matrox Radient eV-CL dual-Full Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
    connectors. Includes cable adaptor (auxiliary I/O).
