 acA800-510um

제품목록  E-Mail 견적문의  SMS 견적문의
제조사 Basler
모델명 acA800-510um
다운로드

     제품스펙

    The Basler acA800-510um USB 3.0 camera with the ON Semiconductor PYTHON 500 CMOS sensor delivers 511 frames per second at CCIR resolution.

     제품상세

    acA800-510um - Basler ace

    The Basler acA800-510um USB 3.0 camera with the ON Semiconductor PYTHON 500 CMOS sensor delivers 511 frames per second at CCIR resolution.

    USB3 Vision

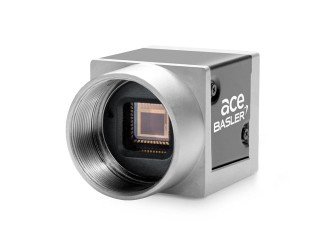

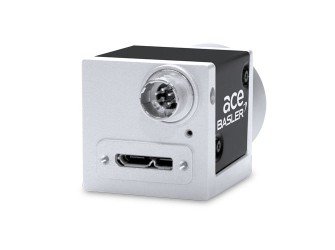

    ace_USB3_Sensor-small_f_l_670x500px__x250.jpg ace_USB3_b_l_670x500px__x250.jpg

    General Information
      Order Number 106764
      Product Line ace U
      Price For pricing, please use the request cart to get a quote.
      Shipment For information about shipping please use the request cart.

    Sensor
      Sensor Vendor ON Semiconductor
      Sensor PYTHON 500
      Shutter Global Shutter
      Sensor Format 1/3.6"
      Sensor Type CMOS
      Sensor Size 3.8 mm x 2.9 mm
      Resolution (HxV) 800 px x 600 px
      Resolution CCIR
      Pixel Size (H x V) 4.8 µm x 4.8 µm
      Frame Rate 511 fps
      Mono/Color Mono

    EMVA Data
      EMVA Quantum Efficiency (typical) 52.0 %
      Dark Noise (typical) 10.7 e¯
      Saturation Capacity (typical) 7.0 ke¯
      Dynamic Range (typical) 56.3 dB
      Signal-to-Noise Ratio (typical) 38.5 dB

    Camera Data
      Interface USB 3.0
      Pixel Bit Depth 10 bits
      Synchronization
    • software trigger
    • hardware trigger
    • free-run
      Exposure Control
    • programmable via the camera API
    • hardware trigger
      Digital Input 1
      Digital Output 1
      General Purpose I/O 2
      Power Supply
    • Via USB 3.0 interface
      Power Requirements (typical) 3 W

    Housing
      Housing Type Box
      Housing Size (L x W x H) 29.3 mm x 29 mm x 29 mm
      Lens Mount
    • C-mount
      Operating Temperature 0 - 50°C
      Weight (typical) 80g

    Conformity
      Conformity
    • CE
    • RoHS
    • GenICam
    • IP30
    • FCC
    • USB3 Vision
    • UL
    • KC
    • EAC

    Features
      Chunks
      Event Reporting
      I/O Control and Line Source Signals
      Image Acquisition Control
      Light Control Features
      Miscellaneous
      PGI
      Pixel Formats
      Standard Features

    Mechanical drawing for acA800-510um

    Mechanical drawings provide the detailed measurements of a camera product. Click on the link below to download the mechanical drawing for acA800-510um.

    Download now Basler ace - acA800-510um
