- Line Scan Camera CL
MV-CL086-90CC
| 제조사 | HIK ROBOT |
|---|---|
| 모델명 | MV-CL086-90CC |
| 다운로드 |
|
제품스펙
8192 P TDI CameraLink Line Scan Camera
제품상세

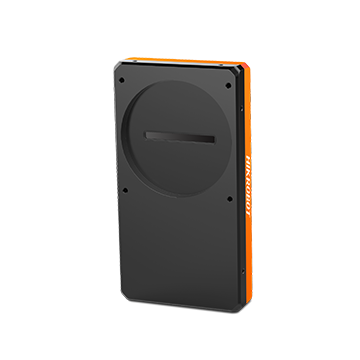

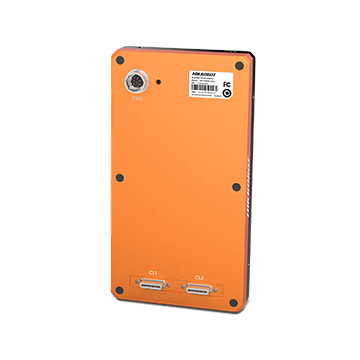

MV-CL086-90CC
8192 P TDI CameraLink Line Scan Camera
Introduction
Key Feature
-
Supports configuration modes of Base, Medium and 80-bit viathe Camera Link interface.
-
Supports TDI function to select different image modes.
-
Supports exposure time and gain adjustment, PRNUCcorrection, LUT, Gamma correction, etc.
-
Compact design and flexible installation.
-
Compatible with Camera Link Protocol and GenlCam Standard.
Available Model
Color camera: MV-CL086-90CC
Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Specifications
| Model | Model | MV-CL086-90CC |
| Type | 8192 P TDI Camera Link Line Scan Camera | |
| Camera | Sensor type | CMOS |
| Pixel Size | 5 μm | |
| Resolution | 8192×6 | |
| Image mode | Supports 1-line/2-TDI | |
| Max. Line Rate | 10 kHz (Base), 20 kHz (Medium), 34 kHz (80-bit) | |
| Configuration mode | Base, Medium, 80-bit | |
| Tap Geometry | 1X, 1X2, 1X4, 1X10 | |
| Tap number | 1 Tap, 2 Taps, 4 Taps, 10 Taps | |
| Pixel clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz | |
| Dynamic Range | 62 dB | |
| SNR | 42 dB | |
| Gain | Supports 2.7 ×, 3.0 ×, 3.5 ×, 4.6 ×, 6.2 × | |
| Exposure Time | 3 μs to 10 ms | |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure | |
| Mono/Color | Color | |
| Pixel format | RGB 8, Mono 8/10 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal reverse image output | |
| Trigger mode | External trigger, internal trigger | |
| External trigger mode | Line trigger, frame trigger, line + frame trigger | |
| Electrical features | Data Interface | Camera Link |
| Digital I/O | 12-pin Hirose connector provides power and I/O, including differential input × 2 (Line 0, Line 3), differential output × 2 (Line 1, Line 4). Camera Link provides I/O (CC1/CC2/CC3/CC4) | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | Typ. 12.3 W@12 VDC | |
| Mechanical | Lens Interface | M72*0.75, optical back focal length: 10.1 mm (0.4"), applicable to F-mount via lens adapter |
| Dimension | 150 mm × 80 mm × 23.8 mm (5.9" × 3.1" × 0.9") | |
| Weight | Approx. 400 g (0.9 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS and frame grabber software meeting with CameraLink Protocol |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Compatibility | CameraLink V1.2, GenICam | |
| Certification | CE, FCC, RoHS, KC |
