MV-CL021-40GM
제조사 | HIK ROBOT |
---|---|
모델명 | MV-CL021-40GM |
다운로드 |
|
제품스펙
제품상세

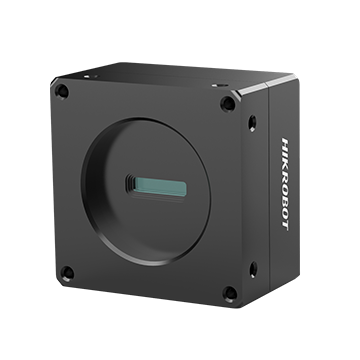

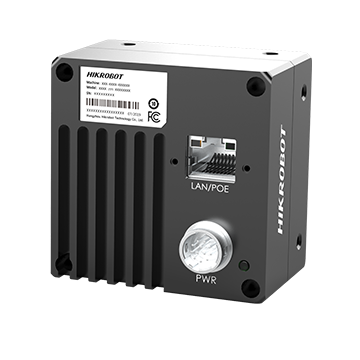

MV-CL021-40GM
2K Line Scan CMOS GigE Camera
Introduction
Key Feature
Adopts GigE interface and max. transmission distance of 100 meters without relay
128 MB on-board buffer, for image burst transmitting and retransmitting
Supports auto exposure control, LUT, Gamma correction, etc
Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard
Available Model
Mono Camera: MV-CL021-40GM
Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Specifications
Model | Model | MV-CL021-40GM |
Type | 2K Line Scan CMOS GigE Camera | |
Camera | Sensor type | CMOS |
Pixel Size | 7 μm | |
Resolution | 2048×1 | |
Max. Line Rate | 56 kHz @Mono 8, 28 kHz @Mono 10/12, 37 kHz @Mono 10p/12p | |
Pixel format | Mono 8/10/10p/12/12p | |
Dynamic Range | 60 dB | |
SNR | 40 dB | |
Gain | 0 dB to 12dB | |
Exposure Time | 2 μs to 10 ms | |
Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure | |
Mono/Color | Mono | |
Reverse image | Supports horizontal reverse image output | |
Binning | Support 1/2/3/4 | |
External trigger mode | Line trigger, frame trigger | |
Trigger mode | External trigger, internal trigger | |
Image Buffer | 128 MB | |
Electrical features | Data Interface | GigE |
Digital I/O | 12-pin Hirose connector provides power supply and I/O, including differential input × 2 (Line 0, Line 3), differential output × 2 ( Line 1, Line 4), and bi-directional non-isolated I/O x 1 (Line 2) | |
Power supply | 12 VDC, supports PoE | |
Power consumption | Typ. 4 W @12 VDC | |
Mechanical | Lens Interface | M42×1.0, back focal distance 12mm, F mount or C mount lens supported with lens adapter |
Dimension | 62 mm × 62 mm × 37.5 mm (2.4" × 2.4" × 1.5") | |
Weight | Approx. 170 g (0.4 lb.) | |
Ingress protection | IP40 (under proper lens installation and wiring) | |
Temperature | Working temperature: 0°C to 50 °C (32 °F to 122 °F)Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
Humidity | 20% to 80% RH, non-condensing | |
General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
Compatibility | GigE Vision V2.0, GenlCam | |
Certification | CE, FCC, RoHS, KC |
