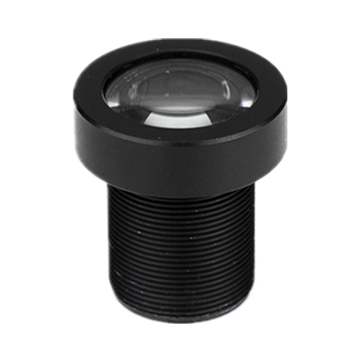

MVL-HF1228-05S
| 제조사 | HIK ROBOT |
|---|---|
| 모델명 | MVL-HF1228-05S |
| 다운로드 |
|
제품스펙
12mm F2.8 M12 Mount Lens
제품상세
MVL-HF1228-05S
8mm F2.8 M12 Mount Lens
Introduction
Key Feature
-
Optimization design for machine vision
-
High resolution, High consistency of picture definition
-
Low Distortion, High relative illumination
-
S-Mount (M12 * 0.5), Easy system integration
Available Model
MVL-HF1228-05S
Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Specifications
| Model | Model | MVL-HF1228-05S |
| Type | 12mm F2.8 M12 Mount Lens | |
| Performance | Focal Length | 12 mm |
| F-Number | F2.8 | |
| Image Size | Φ9 mm(1/1.8'') | |
| TV Distortion | <0.2% | |
| Working Distance Range | 100 ~ 850 mm | |
| Field of View | D（8.86 mm）： 41° H（7.37 mm）： 34° V（4.91 mm）： 23° | |
| Mechanical | Mount | S-Mount |
| TTL | 25.4 ~ 26.9 mm | |
| Dimension | Φ15.4 mm× 19.46 mm | |
| Temperature | -10 ~ 50℃ | |
| General | Certification | RoHS2.0 |
