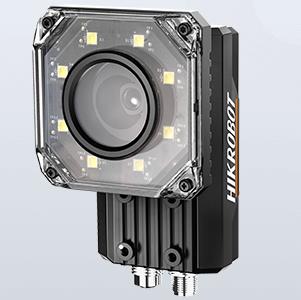

MV-ID5060M-08S-WBN
| 제조사 | HIK ROBOT |
|---|---|
| 모델명 | MV-ID5060M-08S-WBN |
| 다운로드 |
|
제품스펙
6 MP Smart Code Reader
제품상세
MV-ID5060M-08S-WBN
6 MP Smart Code Reader
Key Feature
-
Adopts built-in deep learning algorithm to read barcodes with good robustness.
-
Adopts mechanical autofocus lens to achieve automatic focusing.
-
Adopts multiple IO interfaces for input and output signals.
-
Supports multiple communication protocols,including TCP/IP, Serial, UDP, FTP, HTTP, etc.
-
Adopts CMOS sensor to acquire image data and provide high-quality image.
-
Supports RS-232 serial port and indicators displaying device status.
Available Model
8 mm focal length: MV-ID5060M-08S-WBN
Dimension
| Model | Model | MV-ID5060M-08S-WBN |
| Type | 6 MP Smart Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF25, CodaBar, EAN 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 30 fps | |
| Max. reading speed | 90 codes/s | |
| Sensor type | CMOS, rolling shutter | |
| Pixel size | 2.4 μm x 2.4 μm | |
| Sensor size | 1/1.8" | |
| Resolution | 3072 × 2048 | |
| Exposure time | 16 μs to 1 s | |
| Gain | 0 dB to 40 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, HTTP | |
| Electrical features | Data interface | GigE |
| Digital IO | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, optoisolated output (LineOut 0/1/2) × 3, RS-232 input × 1, and RS-232 output × 1. | |
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 20 W@24 VDC (light source is enabled) | |
| Mechanical | Lens focal length | 8 mm (0.3") |
| Lens mount | M12-mount, mechanical autofocus lens. | |
| Lens cap | Transparent lens cap. Polarization lens cap is optional. | |
| Lighting | White light. Red or blue light is optional. | |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user indicator (U1/U2). | |
| Dimension | 118.7 mm x 78 mm x 73.2 mm (4.7" x 3.1" x 2.9") | |
| Weight | Approx. 520 g (1.1 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certifications | CE, FCC, RoHS |
