IFHA-300/150_HV
| 제조사 | leimac |
|---|---|
| 모델명 | IFHA-300/150_HV |
| 다운로드 |
|
제품스펙
IFHA-300/150_HVSquare Dome Light – IFHA series
제품상세
IFHA-300/150_HV

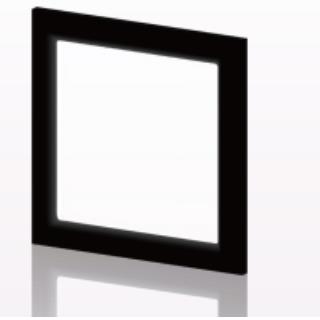

Square Dome Light
IFHA-300/150_HVSquare Dome Light – IFHA series
| Model | IFHA-300/150RHV | IFHA-300/150WHV | IFHA-300/150BHV | IFHA-300/150GHV | IFHA-300/150IR-850HV |
|---|---|---|---|---|---|
| Item Number | 357-754 | 357-755 | 357-756 | 357-759 | 357-757 |
| Color |  |
 |
 |
 |
 |
| Color temperature/Peak Wavelength | 630nm typ. | 5000K typ. | 465nm typ. | 520nm typ. | 850nm typ. |
| Input Voltage | DC24V | ||||
| Power Consumption | 30W | ||||
| Cable Length | 500mm | ||||
| Input Connector | SM connector(SMR-03V-B) | ||||
| Polarity | 1:+ 2:NC 3:- | ||||
| Ambient Temperature | 0~+40℃ | ||||
| Ambient Humidity | 35~85% (non condensing) | ||||
| Weight | 720g | ||||
| Adaptable Compliance |    IEC62471 | ||||
| Cables | |||||
| Controllers |
Please check the output voltage of the compatible power supply. | ||||
Product Data Download
| Catalog | Download |
|---|---|
| Sketch Drawing PDF | Members-Only |
| Sketch Drawing DXF | Members-Only |
| 3D Model (STEP) | Members-Only |
*Please login from the member registration / login page for requesting a product trial or downloading members-only data.
