IFHA

series

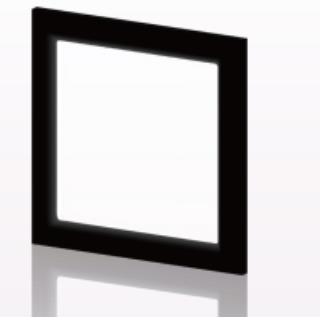

Square Dome Light IFHA series

Much brighter and clearer imaging is possible.

Lightweight, thin 8-mm dome lighting.Its no camera window design enables wide range and high uniform irradiation!

Compared to the conventional IFH series, the brightness is about 6 times higher, and the uniformity and clarity are also improved.

It is possible to capturing images without being impeded by unwanted reflections even at close distances to the object.

Model	Input Voltage	Color	Dimensions (W/D/H)
IFHA-50	DC12V		97mm/97mm/8mm
IFHA-50IR-850	DC12V		97mm/97mm/8mm
IFHA-75	DC12V		122mm/122mm/8mm
IFHA-75IR-850	DC12V		122mm/122mm/8mm
IFHA-100	DC12V		147mm/147mm/8mm
IFHA-100IR-850	DC12V		147mm/147mm/8mm
IFHA-150	DC12V		197mm/197mm/8mm
IFHA-150IR-850	DC12V		197mm/197mm/8mm
IFHA-200	DC12V		247mm/247mm/8mm
IFHA-200IR-850	DC12V		247mm/247mm/8mm
IFHA-100_HV	DC24V		147mm/147mm/8mm
IFHA-100IRHV-850	DC24V		147mm/147mm/8mm
IFHA-150_HV	DC24V		197mm/197mm/8mm
IFHA-150IRHV-850	DC24V		197mm/197mm/8mm
IFHA-200_HV	DC24V		247mm/247mm/8mm
IFHA-200IRHV-850	DC24V		247mm/247mm/8mm
IFHA-300_HV	DC24V		347mm/347mm/8mm
IFHA-300IRHV-850	DC24V		347mm/347mm/8mm
IFHA-200/100	DC12V		247mm/147mm/8mm
IFHA-300/150_HV	DC24V		347mm/197mm/8mm
IFHA-400/200_HV	DC24V		449mm/249mm/9mm

Compared to exostong model,it is approximately 6 times brighter.

By improving the special processing applied to the opening acrylic plate and by improving the LED light emitting part, brightness about 6 times that of the conventional product is possible.

Significantly improved uniformity compared to conventional products

Significantly improved definition

Even in the print area, the print can be clearly seen, and the faintness of the print can be clearly judged.

Ideal for glossy work

Ideal for inspection of workpieces that generate irregularities or light.

Hard coat processing

We made a hard coating on both sides of the lighting opening acrylic to make it resistant to scratches.
The surface hardness is equivalent to 4H, which is stronger than general acrylic materials.

The light emitting surface is particularly susceptible to damage, so if dust or dirt adhere to it, remove it with an air blow or other means.
Caution: Dust, scratches and scratches on the light emitting surface may affect the imaging.

Lightweight,thin and easy to install

Space-saving installation is possible even if the installation location is limited.

Even at a close distance to the workpiece, you can capture images without disturbing annoying reflections.
