제조사 Matrox
모델명 RAP 8G 4C12 P352
다운로드

     제품스펙

    Matrox Rapixo CXP Pro Quad CXP-12 PCIe 3.1 x8 frame grabber with 8 GB DDR4 SDRAM, Xilinx Kintex Ultrascale KU035 FPGA, and
    active heatsink (fansink). Includes one (1) mDP-to-HD15 GPIO cable adaptor.

     제품상세

    • Components
    Frame Grabbers

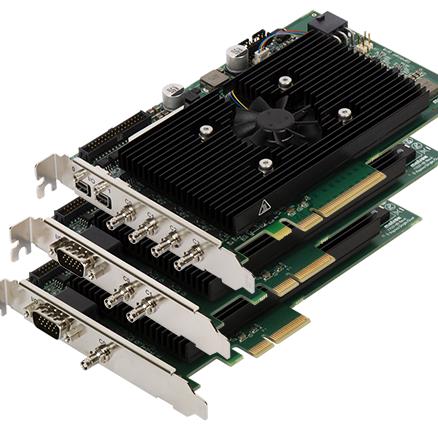

    Matrox Rapixo CXP











    Single- to quad-input CoaXPress 2.0 frame grabbers with optional data forwarding and FPGA-based image processing offload






     Matrox® Rapixo CXP is a new generation of frame grabbers, supporting version 2.0 of the CoaXPress® digital interface standard for machine vision applications. The Matrox Rapixo CXP series supports data rates of either up to 6.25 Gbps (CXP-6) or up to 12.5 Gbps (CXP-12) per connection. The PCIe® host interface comfortably matches the maximum input bandwidth from the CoaXPress links. The CoaXPress links are accessed through high-density BNC connectors allowing for a homogenous interconnection with new cameras. Power-over-CoaXPress (PoCXP) support on each connection simplifies system configurations, combining the camera’s power interface with its command- and data-interface onto the same coaxial cable.

    The Matrox Rapixo CXP series of frame grabbers feature one, two, or four connections for interfacing to independent cameras. Matrox Rapixo CXP Dual and Quad models can also handle higher data rates through connection aggregation. The Matrox Rapixo CXP series possesses sufficient onboard memory to buffer incoming image data in situations where the host computer is temporarily unable to accept data. The fanless design for select models ensures extended use without maintenance.

    Specifications



    Matrox Rapixo CXP

    Hardware

    Model

    Matrox Rapixo CXP Single/Dual

    Matrox Rapixo CXP Quad

    Matrox Rapixo CXP Quad Data Forwarding

    Host interface

    Interconnect

    PCIe 2.1/3.1 x4

    PCIe 2.1/3.1 x8

    PCIe 3.1 x8

    Camera/video interface

    Standard

    CXP version 2.0

    Configuration

    One (1) or two (2) input
    connection(s)

    Four (4) input connections

    Four (4) input connections and four (4)
    output connections

    Speeds

    1.25 / 2.5 / 3.125 / 5 / 6.25 / 10 / 12.5 Gbps (CXP-1, 2, 3, 5, 6, 10, and 12 respectively)

    Streams

    Up to eight (8) total

    Connectors

    High-density BNC

    Power output

    PoCXP

    Miscellaneous

    Connection-status indicator LEDs for inputs

    Memory

    Type

    DDR3 SDRAM

    DDR4 SDRAM

    Quantity

    1 or 2 GB

    4 or 8 GB

    4 GB

    Purpose

    Image buffering and processing

    Image processing capabilities

    Onboard

    look-up tables

    8-/10-/12-bit support

    Onboard

    Bayer interpolation

    GB, BG, GR, and RG pattern support

    Onboard
    color space
    conversion

    Input formats: 8-/16-bit mono/Bayer, 24-/48-bit packed BGR

    Output formats: 8-/16-bit mono, 24-/48-bit packed/planar BGR, 16-bit YUV, 16-bit YCbCr, 32-bit BGRa


    Custom processing


    N/A

    Matrox Imaging- or user-developed
    using Xilinx Vivado    ® Design Suite and
    Matrox FDK


    N/A

    I/Os


    Types

    Three (3) TTL I/Os per connector

    Two (2) LVDS inputs per connector

    One (1) LVDS output per connector

    Two (2) opto-isolated inputs per connector


    Connectors

    One (1) HD15 connector on main
    I/O bracket

    Two (2) mDP connectors on main I/O bracket accessed through a
    mDP-to-HD15 adaptor

    Two (2) HD15 connectors on secondary I/O bracket

    Physical

    Form factor

    Half-length, full-height, PCIe add-in card

    Dimensions
    (L x W x H)

    16.76 x 11.12 x 1.871 cm (6.6 x 4.376 x 0.737 in)

    Environmental

    Operating
    temperature

    0°C to 55°C (32°F to 131°F)2

    Relative humidity

    Up to 95% (non-condensing)



    Certifications


    Electromagnetic
    compatibility

    FCC Class A

    CE Class A (EN55032, EN55024)

    ICES-003 / NMB-003 Class A

    RCM Class A

    KC Class A

    Software


    Compatible software

    MIL X

    Matrox Design Assistant X

    GenICam™ GenTL version 1.5


    Operating
    system support

    Windows 7 (64-bit)

    Windows 10 (64-bit)

    Linux (64-bit)

    Note: MIL X only.

    Licensing provisions

    MIL X license fingerprint and storage



    Ordering Information



    Part number Description

    Hardware


    RAP 1G 1C12


    Matrox Rapixo CXP Single CXP-12 PCIe 2.1 x4 frame grabber with 1 GB DDR3 SDRAM and passive heatsink.

    Note: Cable adaptors for second and third GPIO sets sold separately.


    RAP 2G 2C12


    Matrox Rapixo CXP Dual CXP-12 PCIe 3.1 x4 frame grabber with 2 GB DDR3 SDRAM and passive heatsink.

    Note: Cable adaptors for second and third GPIO sets sold separately.


    RAP 4G 4C6


    Matrox Rapixo CXP Quad CXP-6 PCIe 2.1 x8 frame grabber with 4 GB DDR4 SDRAM and passive heatsink. Includes one (1)
    mDP-to-HD15 GPIO cable adaptor.

    Note: Cable adaptors for second, third, and fourth GPIO sets sold separately.


    RAP 4G 4C12


    Matrox Rapixo CXP Quad CXP-12 PCIe 3.1 x8 frame grabber with 4 GB DDR4 SDRAM and passive heatsink. Includes one (1) mDP-to-
    HD15 GPIO cable adaptor.

    Note: Cable adaptors for second, third, and fourth GPIO sets sold separately.


    RAP 8G 4C12 P352


    Matrox Rapixo CXP Pro Quad CXP-12 PCIe 3.1 x8 frame grabber with 8 GB DDR4 SDRAM, Xilinx Kintex Ultrascale KU035 FPGA, and
    active heatsink (fansink). Includes one (1) mDP-to-HD15 GPIO cable adaptor.

    Note: Cable adaptors for second, third, and fourth GPIO sets sold separately.


    RAP 8G 4C12 P602


    Matrox Rapixo CXP Pro Quad CXP-12 PCIe 3.1 x8 frame grabber with 8 GB DDR4 SDRAM, Xilinx Kintex Ultrasacale KU060 FPGA, and
    active heatsink (fansink). Includes one (1) mDP-toHD15 GPIO cable adaptor.

    Note: Cable adaptors for second, third, and fourth GPIOs sold separately.


    RAP 4G 4C12 DF3

    Verify for availability


    Matrox Rapixo CXP Quad Data Forwarding CXP-12 PCIe 3.1 x8 frame grabber with 4 GB DDR4 SDRAM and passive heatsink. Includes
    one (1) mDP-to-HD15 GPIO cable adaptor.

    Note: Cable adaptors for second, third, and fourth GPIO sets sold separately.

    Software


    Refer to MIL X datasheet and Matrox FDK datasheet.


    Refer to Matrox Design Assistant X datasheet.

    Accessories


    RAPACCKIT02


    Accessory kit for Matrox Rapixo CXP Single/Dual. Includes one (1) secondary dual HD15 I/O bracket with ribbon cable.


    RAPACCKIT01


    Accessory kit for Matrox Rapixo CXP Quad. Includes one (1) additional mDP-to-HD15 GPIO cable adaptor and one (1) secondary dual
    HD15 I/O bracket with ribbon cable.


    HDBNC2BNC


    One (1) 12 in or 30 cm HDBNC-male-to-BNC-female adaptor cable.


    Matrox Rapixo CXP DATASHEET
