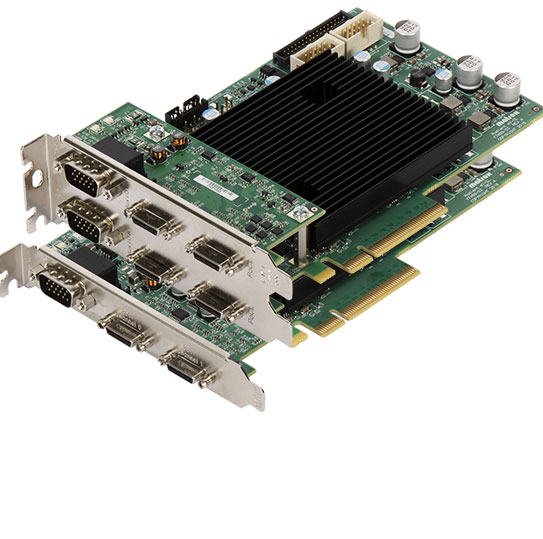

Matrox Radient eV-CL

Hardware

Host interface

Interconnect

PCIe 2.1 x4 / x8

Camera/video interface

Standard

Camera Link 2.1

Configuration

Two (2) independent Base Camera Link ports (dual-Base)

One (1) Medium/Full Camera Link port (single-Full)

Up to 80-bit mode

Four (4) independent Base Camera Link ports (quad-Base)

Two (2) independent Medium/Full Camera Link ports (dual-Full)

Up to 80-bit mode

Speeds

20 MHz to 85 MHz Camera Link clock

Connectors

HDR26 (mini Camera Link)

Power output

PoCL with SafePower

Miscellaneous

Extended Camera Link cable length support

Supports frame and line scan sources

Memory

Type

DDR3 SDRAM

Quantity

512 MB or 1 GB

Purpose

Image buffering and preprocessing

Image processing capabilities

Onboard

look-up tables (LUTs)

8-/10-/12-bit support

Onboard

Bayer interpolation

GB, BG, GR, and RG pattern support

Onboard
color space
conversion

Input formats: 8-/16-bit mono/Bayer, 24-/48-bit packed BGR

Output formats: 8-/16-bit mono, 24-/48-bit packed/planar BGR, 16-bit YUV, 32-bit BGRa

I/Os

Types

Three (3) TTL configurable auxiliary I/Os per connector

Two (2) LVDS auxiliary inputs per connector

One (1) LVDS auxiliary output per connector

Two (2) opto-isolated auxiliary inputs per connector

Connectors

One (1) / two (2) DBHD-15 male GPIO connector(s) (dual-Base and single-Full / quad-Base and dual-Full)

One (1) / two (2) optional additional DBHD-15 male GPIO connector(s) (dual-Base / quad-Base)

I/Os synchronization

One (1) quadrature rotary encoder per Camera Link port

Four (4) 16-bits timer

Physical

Form factor

Half-length, full-height, PCIe add-in card

Dimensions
(L x W x H)

167.6 x 111.1 x 18.7 mm (6.6 x 4.38 x 0.74 in)

Additional Camera Link module for quad-Base / dual-Full: 45.0 x 106.65 x 18.7 mm (1.77 x 4.20 x 0.74 in)

Environmental

Operating temperature

0°C to 55°C (32°F to 131°F)

Relative humidity

Up to 95% (non-condensing)

Certifications

Electromagnetic
compatibility

FCC Class A

CE Class A

RoHS-compliant

Software

Compatible software

MIL X

Software drivers

MIL X drivers for Windows 7 (32-/64-bit)

MIL X drivers for Windows 10 (32-/64-bit)

MIL X driver for Linux (64-bit)

Camera
communication

GenICam CLProtocol 1.2

GenICam GenCP 1.3

Licensing provisions

MIL X license fingerprint and storage

Part number Description

Hardware

RAD EV 5M CLDB

Matrox Radient eV-CL dual-Base Camera Link PCIe 2.1 x4 frame grabber with 512 MB DDR SDRAM and HDR26 (mini Camera Link)
connectors. Includes cable adaptor (auxiliary I/O).

RAD EV 5M CLSF

Matrox Radient eV-CL single-Full Camera Link PCIe 2.1 x4 frame grabber with 512 MB DDR SDRAM and HDR26 (mini Camera Link)
connectors. Includes cable adaptor (auxiliary I/O).

RAD EV 1G CLDB

Matrox Radient eV-CL dual-Base Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
connectors. Includes cable adaptor (auxiliary I/O).

RAD EV 1G CLSF

Matrox Radient eV-CL single-Full Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
connectors. Includes cable adaptor (auxiliary I/O).

RAD EV 1G CLQB

Matrox Radient eV-CL quad-Base Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
connectors. Includes cable adaptor (auxiliary I/O).

RAD EV 1G CLDF

Matrox Radient eV-CL dual-Full Camera Link PCIe 2.1 x8 frame grabber with 1 GB DDR SDRAM and HDR26 (mini Camera Link)
connectors. Includes cable adaptor (auxiliary I/O).
