MVL-KF0618M-12MPE
| 제조사 | HIK ROBOT |
|---|---|
| 모델명 | MVL-KF0618M-12MPE |
| 다운로드 |
|
제품스펙
1.1” 6mm 12MP FA LENS
제품상세

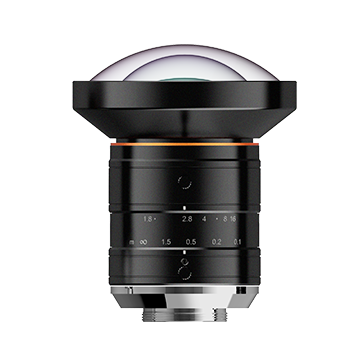

MVL-KF0618M-12MPE
1.1” 6mm 12MP FA LENS
Introduction
Key Feature
-
Ultra high resolution and consistency of image clarity
-
Lower distortion
-
Super high image peripheral brightness ratio
-
Excellent optical properties are maintained at different object distances
Available Model
MVL-KF0618M-12MPE
Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Specifications
| Model | Model | MVL-KF0618M-12MPE |
| Type | 1.1” 6mm 12MP FA LENS | |
| Performance | Focal Length | 6 mm |
| F-Number | F1.8 ~ F16 | |
| Image Size | Φ17.6 mm(1.1'') | |
| Distortion | 2.5% | |
| Minimum Operation Distance | 0.1 m | |
| Field of View | D（17.52mm）：118.2° H（14.14mm）：104.9° V（10.35mm）：86.2° | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Mount | C-Mount | |
| Flange Back Length | 17.526 mm | |
| Dimension | Φ66×77.8 mm | |
| Weight | 353 g | |
| Temperature | -10 ~ 50℃ | |
| General | Certification | RoHS2.0 |
Download
