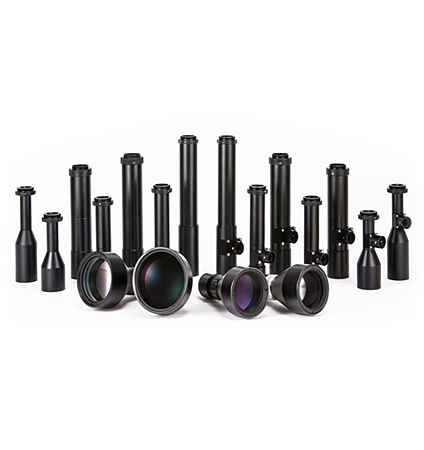

TCL-HR Series
| 제조사 | SPO Inc. |
|---|---|
| 모델명 | TCL-HR Series |
| 다운로드 |
|
제품스펙
4.65um pixel 이미지 센서에 최적화 된 렌즈
제품상세
TCL-HR Series
| Model | Mag | W.D (mm) |
Resolution (um) |
N.A | F/# | D.O.F (mm) |
Telecentricity (Degree) |
Optical Distortion (%) |
Sensor Size(mm) (Diagonal Length) |
Mount | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TCL0.165X-130I-HR-8 | 0.165X | 130 | 28 | 0.012 | 6.8 | 20 | 0.017 | 0.15 | 1/2"(8mm) | C | PDF CAD |
| TCL0.23X-130I-HR | 0.23X | 130 | 21 | 0.016 | 7.2 | 10.1 | 0.01 | 0.13 | 2/3"(11mm) | C | PDF CAD |
| TCL0.3X-130I-HR | 0.3X | 130 | 17.7 | 0.019 | 7.9 | 7 | 0.04 | 0.08 | 2/3"(11mm) | C | PDF CAD |
| TCL0.35X-130I-HR-8 | 0.35X | 130 | 14 | 0.0238 | 7.3 | 4.8 | 0.035 | 0.08 | 1/2"(8mm) | C | PDF CAD |
| TCL0.5X-170-HR | 0.5X | 170 | 16 | 0.0220 | 11.3 | 3.6 | 0.04 | 0.03 | 2/3"(11mm | C | PDF CAD |
| TCL0.5X-170D-HR | 0.5X | 170 | 16 | 0.0220 | 11.3 | 3.6 | 0.04 | 0.03 | 2/3"(11mm) | C | PDF CAD |
WD 110mm Series
| Model | Mag | W.D (mm) |
Resolution (um) |
N.A | F/# | D.O.F (mm) |
Telecentricity (Degree) |
Optical Distortion (%) |
Sensor Size(mm) (Diagonal Length) |
Mount | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TCL0.35X-110D-HR-8 | 0.35X | 110 | 21.1 | 0.0159 | 11 | 7.2 | 0.03 | 0.05 | 1/2"(8mm) | C | PDF CAD |
| TCL0.35X-110-HR-8 | 0.35X | 110 | 21.1 | 0.0159 | 11 | 7.2 | 0.03 | 0.05 | 1/2"(8mm) | C | PDF CAD |
| TCL0.5X-110D-HR-6 | 0.5X | 110 | 11.2 | 0.03 | 8.3 | 2.6 | 0.03 | 0.02 | 1/3"(6mm) | C | PDF CAD |
| TCL0.5X-110-HR-6 | 0.5X | 110 | 11.2 | 0.03 | 8.3 | 2.6 | 0.03 | 0.02 | 1/3"(6mm) | C | PDF CAD |
| TCL0.5X-110D-HR | 0.5X | 110 | 14.9 | 0.0225 | 11.1 | 3.5 | 0.03 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL0.5X-110-HR | 0.5X | 110 | 14.9 | 0.0225 | 11.1 | 3.5 | 0.03 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL0.8X-110D-HR | 0.8X | 110 | 11.2 | 0.03 | 13.3 | 1.6 | 0.017 | 0.15 | 2/3"(11mm) | C | PDF CAD |
| TCL0.8X-110-HR | 0.8X | 110 | 11.2 | 0.03 | 13.3 | 1.6 | 0.017 | 0.15 | 2/3"(11mm) | C | PDF CAD |
| TCL1.0X-110D-HR | 1.0X | 110 | 6.7 | 0.05 | 10 | 800um | 0.03 | 0.15 | 2/3"(11mm) | C | PDF CAD |
| TCL1.0X-110-HR | 1.0X | 110 | 6.7 | 0.05 | 10 | 800um | 0.03 | 0.15 | 2/3"(11mm) | C | PDF CAD |
| TCL1.5X-110D-HR | 1.5X | 110 | 7 | 0.048 | 15.6 | 555um | 0.01 | 0.15 | 2/3"(11mm) | C | PDF CAD |
| TCL1.5X-110-HR | 1.5X | 110 | 7 | 0.048 | 15.6 | 555um | 0.01 | 0.15 | 2/3"(11mm) | C | PDF CAD |
| TCL1.5X-110D-HR-8 | 1.5X | 110 | 5.6 | 0.06 | 12.5 | 444um | 0.02 | 0.06 | 1/2"(8mm) | C | PDF CAD |
| TCL1.5X-110-HR-8 | 1.5X | 110 | 5.6 | 0.06 | 12.5 | 444um | 0.02 | 0.06 | 1/2"(8mm) | C | PDF CAD |
| TCL2.0X-110D-HR | 2.0X | 110 | 4.4 | 0.077 | 13 | 260um | 0.02 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL2.0X-110-HR | 2.0X | 110 | 4.4 | 0.077 | 13 | 260um | 0.02 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL3.0X-110D-HR-8 | 3.0X | 110 | 3.7 | 0.09 | 16.6 | 148um | 0.02 | 0.11 | 1/2"(8mm) | C | PDF CAD |
| TCL3.0X-110-HR-8 | 3.0X | 110 | 3.7 | 0.09 | 16.6 | 148um | 0.02 | 0.11 | 1/2"(8mm) | C | PDF CAD |
| TCL4.0X-110D-HR | 4.0X | 110 | 3.7 | 0.09 | 22.2 | 111um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL4.0X-110-HR | 4.0X | 110 | 3.7 | 0.09 | 22.2 | 111um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL6.0X-110D-HR | 6.0X | 110 | 3.7 | 0.09 | 33.3 | 74um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL6.0X-110-HR | 6.0X | 110 | 3.7 | 0.09 | 33.3 | 74um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL8.0X-110D-HR | 8.0X | 110 | 3.7 | 0.09 | 44.4 | 56um | 0.05 | 0.19 | 2/3"(11mm) | C | PDF CAD |
| TCL8.0X-110-HR | 8.0X | 110 | 3.7 | 0.09 | 44.4 | 56um | 0.05 | 0.19 | 2/3"(11mm) | C | PDF CAD |
WD 65mm Series
| Model | Mag | W.D (mm) |
Resolution (um) |
N.A | F/# | D.O.F (mm) |
Telecentricity (Degree) |
Optical Distortion (%) |
Sensor Size(mm) (Diagonal Length) |
Mount | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TCL0.13X-60I-HR-8 | 0.13X | 60 | 34.6 | 0.0097 | 6.7 | 31.7 | 0.03 | 0.08 | 1/2"(8mm) | C | PDF CAD |
| TCL0.5X-65D-HR | 0.5X | 65 | 11.2 | 0.03 | 8.3 | 2.6 | 0.04 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL0.5X-65-HR | 0.5X | 65 | 11.2 | 0.03 | 8.3 | 2.6 | 0.04 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL0.8X-65D-HR | 0.8X | 65 | 6.7 | 0.05 | 8 | 1 | 0.02 | 0.134 | 2/3"(11mm) | C | PDF CAD |
| TCL0.8X-65-HR | 0.8X | 65 | 6.7 | 0.05 | 8 | 1 | 0.02 | 0.134 | 2/3"(11mm) | C | PDF CAD |
| TCL1.0X-65D-HR | 1.0X | 65 | 6.7 | 0.05 | 10 | 800um | 0.022 | 0.16 | 2/3"(11mm) | C | PDF CAD |
| TCL1.0X-65-HR | 1.0X | 65 | 6.7 | 0.05 | 10 | 800um | 0.022 | 0.16 | 2/3"(11mm) | C | PDF CAD |
| TCL1.5X-65D-HR-8 | 1.5X | 65 | 4.8 | 0.07 | 10.7 | 380um | 0.022 | 0.07 | 1/2"(8mm) | C | PDF CAD |
| TCL1.5X-65-HR-8 | 1.5X | 65 | 4.8 | 0.07 | 10.7 | 380um | 0.022 | 0.07 | 1/2"(8mm) | C | PDF CAD |
| TCL2.0X-65D-HR | 2.0X | 65 | 4.5 | 0.074 | 13.5 | 270um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL2.0X-65-HR | 2.0X | 65 | 4.5 | 0.074 | 13.5 | 270um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL2.4X-65D-HR | 2.4X | 65 | 4.8 | 0.07 | 17.1 | 237um | 0.015 | 0.1 | 2/3"(11mm) | C | PDF CAD |
| TCL2.4X-65-HR | 2.4X | 65 | 4.8 | 0.07 | 17.1 | 237um | 0.015 | 0.1 | 2/3"(11mm) | C | PDF CAD |
| TCL3.0X-65D-HR-8 | 3.0X | 65 | 4 | 0.083 | 18 | 160um | 0.02 | 0.14 | 1/2"(8mm) | C | PDF CAD |
| TCL3.0X-65-HR-8 | 3.0X | 65 | 4 | 0.083 | 18 | 160um | 0.02 | 0.14 | 1/2"(8mm) | C | PDF CAD |
| TCL4.0X-65D-HR | 4.0X | 65 | 3 | 0.11 | 18.1 | 90um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL4.0X-65-HR | 4.0X | 65 | 3 | 0.11 | 18.1 | 90um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL6.0X-65D-HR | 6.0X | 65 | 3 | 0.11 | 27.2 | 61um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL6.0X-65-HR | 6.0X | 65 | 3 | 0.11 | 27.2 | 61um | 0.05 | 0.03 | 2/3"(11mm) | C | PDF CAD |
| TCL10.0X-65D-HR-8 | 10.0X | 65 | 2.2 | 0.15 | 33.3 | 27um | 0.01 | 0.14 | 1/2"(8mm) | C | PDF CAD |
| TCL10.0X-65-HR-8 | 10.0X | 65 | 2.2 | 0.15 | 33.3 | 27um | 0.01 | 0.14 | 1/2"(8mm) | C | PDF CAD |
| TCL12.0X-65D-HR-8 | 12.0X | 65 | 2.1 | 0.161 | 37.3 | 21um | 0.01 | 0.14 | 1/2"(8mm) | C | PDF CAD |
| TCL12.0X-65-HR-8 | 12.0X | 65 | 2.1 | 0.161 | 37.3 | 21um | 0.01 | 0.14 | 1/2"(8mm) | C | PDF CAD |
특 징
4.65um/pixel 카메라 센서에 최적화 된 렌즈로 동축 조명의 단점인 핫스팟(중심 이미지는 밝고 주변 광량비가 떨어짐)를 제거 함으로서 F.O.V내에서 균일한 영상을 구현 할 수 있음
고 사양이 요구되는 얼라인 마크 검사 및 측정에 최적화 된 이미지 성능을 구현 함.

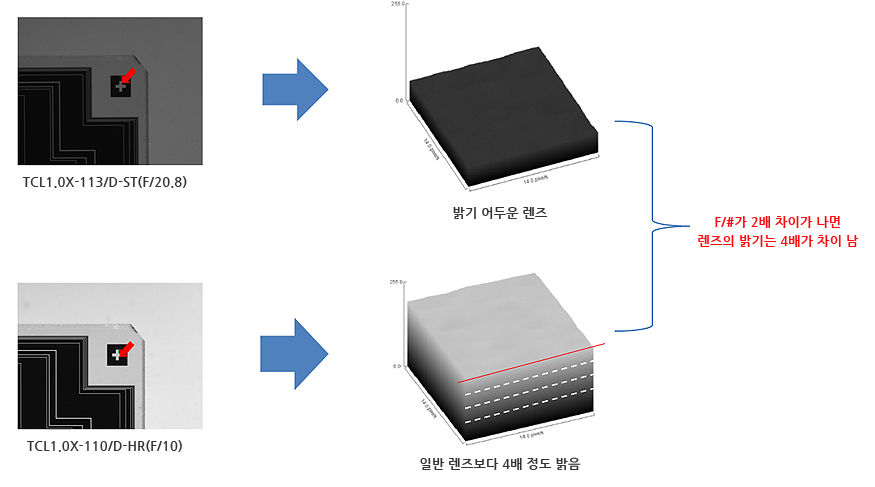

F/#에 따른 HR vs ST의 이미지 성능 및 밝기 비교
각 스펙에 따른 상관 관계
| F/# | D.O.F | N.A | Resolution | Brightness |
|---|---|---|---|---|
| 높음 | 증가 | 낮음 | 낮음 | 감소 |
| 낮음 | 감소 | 높음 | 높음 | 증가 |
F/#는 광학적 공식에 따라 Resolution & N.A 및 D.O.F와 깊은 연관성이 있어 렌즈 선택 시 이러한 부분을 고려해서 선정 해야합니다.
