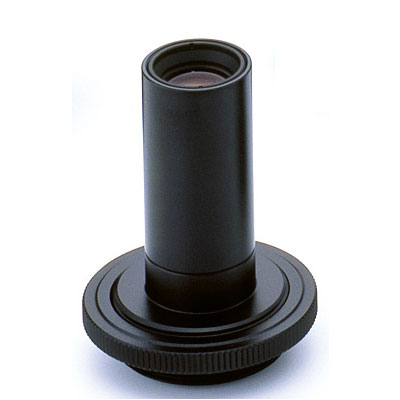

WD40 Built-in type Telecentric Lens Series

Short WD: WD40mm Suitable for small device and limited space

FEATURES

• φ16mm telecentric lens
• Suitable for bonding, chip mounter , etc..

Model	Mag.	F No.	Object side NA	OI	Depth of field	Resolution	TV distortion	Maximum Compatible sensor
TL20-40	2x	14.1	0.071	98mm	0.28mm	4.7μ	0.13％	1/2
TL40-40	4x	28.2	0.071	106mm	0.14mm	4.7μ	-0.19％	1/2
TL60-40	6x	41.6	0.072	118mm	0.09mm	4.7μ	-0.10％	1/2
TL80-40	8x	54.8	0.073	130mm	0.07mm	4.6μ	0.11％	1/2
TL20C-40	2x	14.1	0.071	98mm	0.28mm	4.7μ	0.13％	1/2
TL40C-40	4x	28.2	0.071	106mm	0.14mm	4.7μ	-0.19％	1/2
TL60C-40	6x	41.6	0.072	118mm	0.09mm	4.7μ	-0.10％	1/2
TL80C-40	8x	54.8	0.073	130mm	0.07mm	4.6μ	0.11％	1/2

○Indicated specifications are design values.　
○For C mount　○WD 40mm　
○Resolution indicates a theoretical resolution at a wavelength of 550nm.　
○Depth of field is calculating assuming a horizontal 320 TV resolution using 1/2 inch camera (permissible circle of confusion 40μ).





---



---



---



---



---





---





---





---
